REM6-0512S/A

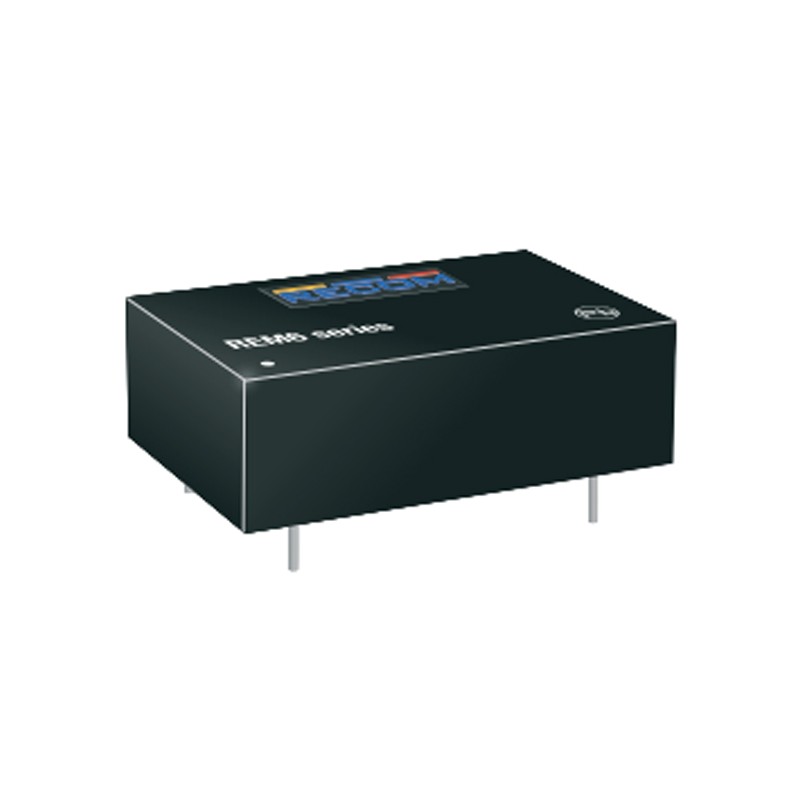

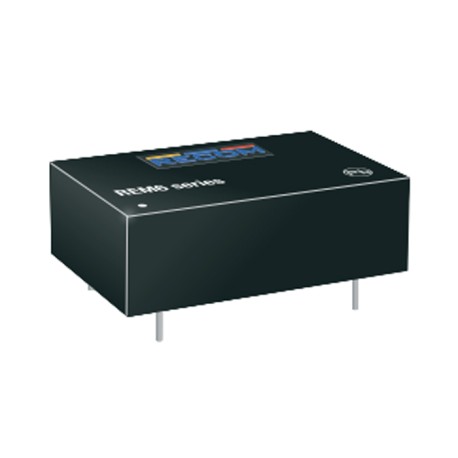

Recom DC/DC converters series REM6

These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM6-_/_W_), furthermore they are available in a type with a control-pin-option (REM6-_/CTRL). We offer the following types of this Recom series: REM6-0505S/A, REM6-0512S/A, REM6-1212S/A, REM6-2405SW/A, REM6-2405SW/A/CTRL, REM6-2412DW/A, and REM6-2415DW/A.

  • single output (REM6-_S), dual output (REM6-_D)
  • maximal output voltage tolerance (at 100% load): ±1%
  • maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V)
  • Iisolation voltage: 5000V AC
  • housing temperature: -40 to +105°C
  • weight: 14g
REM6-0512S/A, Recom DC/DC converters, 6W, DIP/DIL24 housing, medical, REM6 series

REM6-0512S/A

247098 REM6-0512S/A REM6-0512S/A Recom DC/DC converters series REM6. These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM6-_/_W_), furthermore they are available in a type with a control-pin-option (REM6-_/CTRL). We offer the following types of this Recom series: REM6-0505S/A, REM6-0512S/A, REM6-1212S/A, REM6-2405SW/A, REM6-2405SW/A/CTRL, REM6-2412DW/A, and REM6-2415DW/A. single output (REM6-_S), dual output (REM6-_D) maximal output voltage tolerance (at 100% load): ±1% maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V) Iisolation voltage: 5000V AC housing temperature: -40 to +105°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM6-0512S/A
Output voltage [V] 5
Input voltage range [V] 12
Output current range [mA] 1200
Efficiency [%] 86
Data Sheet

Unit price

61,09 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 7 units or
multiples of 7.
