REM5E-1205S/R6/A/SMD

Recom DC/DC converter series REM5E

DC/DC converters with a working voltage isolation (2MOPP, 250V AC), a standard input voltage ratio of 2:1 and an efficiency of up to 80%. These devices in a DIL24 or SMD housing are suitable for medical applications as well as for direct PCB mounting and have an isolation of 8kV DC. We offer the types  REM5E-0505S/R8/A, REM5E-0505S/R6/A/SMD, REM5E-1205S/R8/A and REM5E-1205S/R6/A/SMD of this Recom series.

  • single output
  • output: 5W
  • voltage accuracy, typ.: ±1,5%
  • temperature range: -40 to +80°C
  • weight: 14g

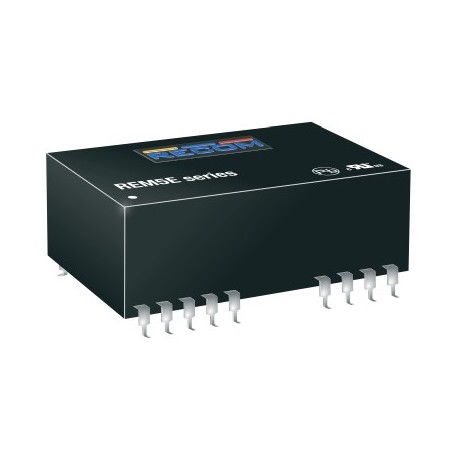

REM5E-1205S/R6/A/SMD, Recom DC/DC converters, 5W, SMD / DIL 24 housing, for medical technology, REM5E series

REM5E-1205S/R6/A/SMD

118108 REM5E-1205S/R6/A/SMD REM5E-1205S/R6/A/SMD Recom DC/DC converter series REM5E. DC/DC converters with a working voltage isolation (2MOPP, 250V AC), a standard input voltage ratio of 2:1 and an efficiency of up to 80%. These devices in a DIL24 or SMD housing are suitable for medical applications as well as for direct PCB mounting and have an isolation of 8kV DC. We offer the types  REM5E-0505S/R8/A, REM5E-0505S/R6/A/SMD, REM5E-1205S/R8/A and REM5E-1205S/R6/A/SMD of this Recom series. single output output: 5W voltage accuracy, typ.: ±1,5% temperature range: -40 to +80°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM5E-1205S/...
Input voltage [V] 12
Output voltage [V] 5
Output current range [mA] 1000
Efficiency [%] 80
Ripple [mVp-p] 150

Unit price

41,59 €

Stock: 15
Further delivery:
CW 29/2025
