REM4A-0515S/SMD

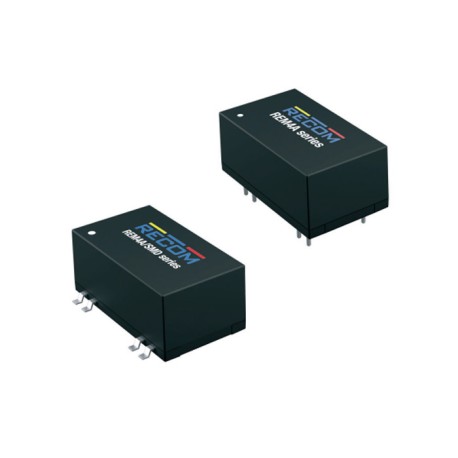

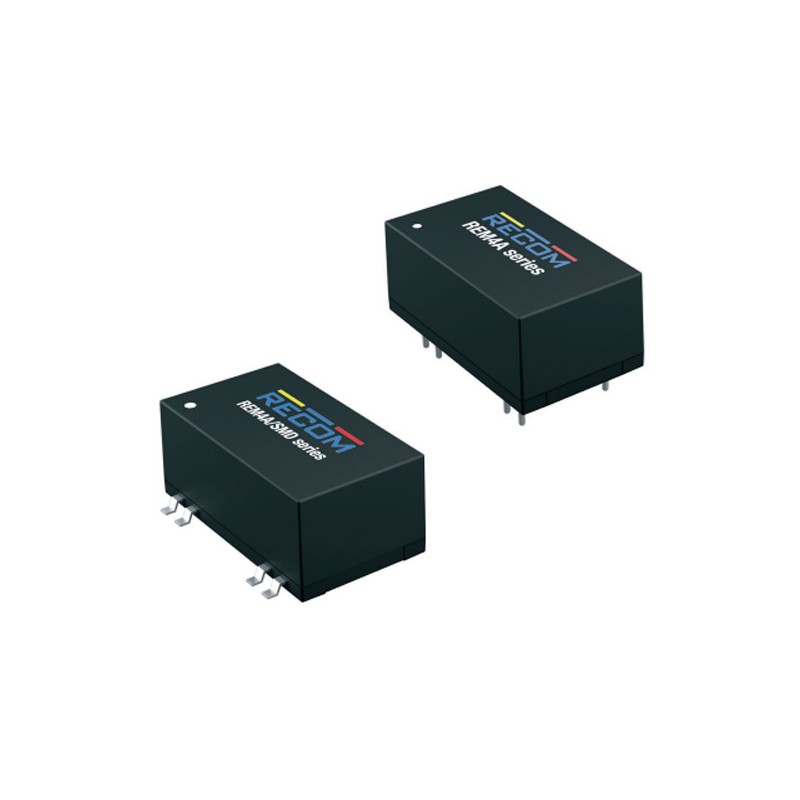

Recom DC/DC converters series REM4A

DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These voltage converters confirm with the safety norms EN 62368-1, UL 62368-1, EN 60601-1, and ANSI/AAMI ES 60601-1. We offer the following types of this Recom series: REM4A-0505S, REM4A-1205S, REM4A-1212S, REM4A-0505S/SMD, REM4A-1205S/SMD, REM4A-1212S/SMD,  REM4A-0515S, REM4A-2405S, REM4A-0515S/SMD, and REM4A-2405S/SMD.

  • single output
  • current: 4W
  • output voltage tolerance: ±1%
  • maximal ripple quality: 50mVp-p
  • isolation voltage (I/P-O/P): 5000 V DC
  • operating temperature: -40 to +105°C
  • dimensions: 24,3x14,4x10,2 mm
  • weight: 7g
REM4A-0515S/SMD, Recom DC/DC converter modules, 4W, SMD, DIP16 housing, REM4A series

REM4A-0515S/SMD

248608 REM4A-0515S/SMD REM4A-0515S/SMD Recom DC/DC converters series REM4A. DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These voltage converters confirm with the safety norms EN 62368-1, UL 62368-1, EN 60601-1, and ANSI/AAMI ES 60601-1. We offer the following types of this Recom series: REM4A-0505S, REM4A-1205S, REM4A-1212S, REM4A-0505S/SMD, REM4A-1205S/SMD, REM4A-1212S/SMD,  REM4A-0515S, REM4A-2405S, REM4A-0515S/SMD, and REM4A-2405S/SMD. single output current: 4W output voltage tolerance: ±1% maximal ripple quality: 50mVp-p isolation voltage (I/P-O/P): 5000 V DC operating temperature: -40 to +105°C dimensions: 24,3x14,4x10,2 mm weight: 7g

Specifications

manufacturer
Manufacturer's name REM4A-0515S/SMD
Output voltage [V] 15
Input voltage range [V] 4,5...12
Efficiency [%] 82
Output current [A] 0,234
Data Sheet

Unit price

36,19 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
