REM3.5E-1205S/R6/A/SMD

Recom DC/DC converter series REM3.5E

DC/DC converters by manufacturer Recom with a standard input voltage ratio of 2:1, an efficiency of up to 80% and an isolation of 8kV DC. These devices in an SMD or DIL24 housing are suited for direct PCB mounting and medical applications. They also have a working voltage isolation (2MOPP, 250V AC). We offer the following types of this Recom series: REM3.5E-0505S/R8/A, REM3.5E-0505S/R6/A/SMD, REM3.5E-1205S/R8/A and REM3.5E-1205S/R6/A/SMD.

  • single output
  • output: 3,5W
  • voltage accuracy, typ.: ±1,5%
  • temperature range: -40 to +85°C
  • weight: 14g

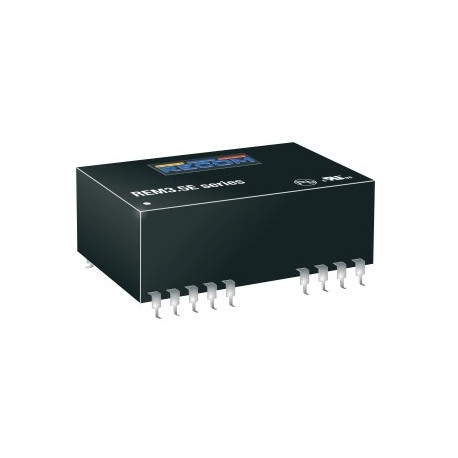

REM3.5E-1205S/R6/A/SMD, Recom DC/DC converters, 3,5W, SMD/DIL 24 housing, for medical technology, REM3.5E series

REM3.5E-1205S/R6/A/SMD

118105 REM3.5E-1205S/R6/A/SMD REM3.5E-1205S/R6/A/SMD Recom DC/DC converter series REM3.5E. DC/DC converters by manufacturer Recom with a standard input voltage ratio of 2:1, an efficiency of up to 80% and an isolation of 8kV DC. These devices in an SMD or DIL24 housing are suited for direct PCB mounting and medical applications. They also have a working voltage isolation (2MOPP, 250V AC). We offer the following types of this Recom series: REM3.5E-0505S/R8/A, REM3.5E-0505S/R6/A/SMD, REM3.5E-1205S/R8/A and REM3.5E-1205S/R6/A/SMD. single output output: 3,5W voltage accuracy, typ.: ±1,5% temperature range: -40 to +85°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM3.5E-1205...
Input voltage [V] 12
Output voltage [V] 5
Output current range [mA] 700
Efficiency [%] 80
Ripple [mVp-p] 150

Unit price

35,39 €

Stock: 15
Further delivery:
CW 29/2025
