REM30-2405SW

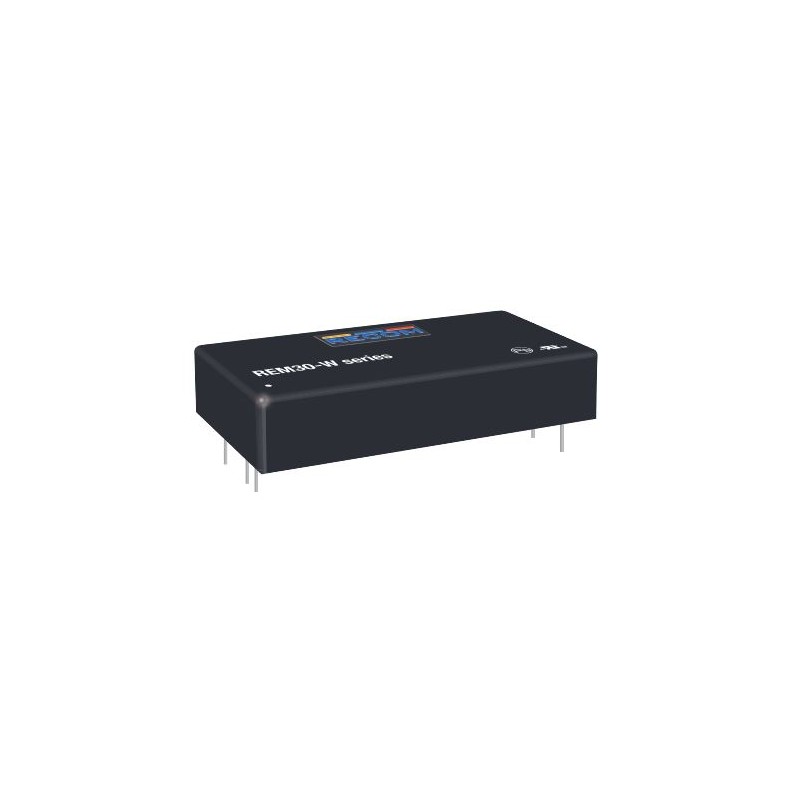

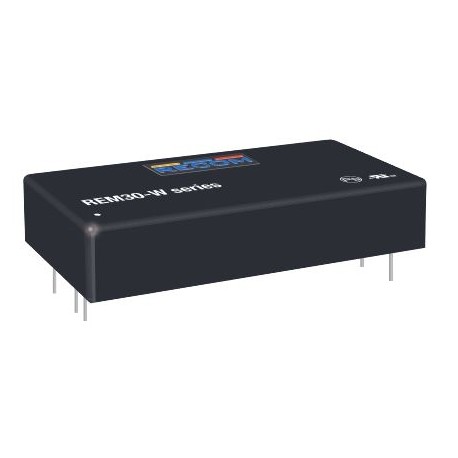

Recom DC/DC converter series REM30-W

DC/DC converters by Recom in a 2''x1'' housing, suited for medical applications and direct PCB mounting. These devices with a working voltage insulation (2MOPP, 250V AC) and 2µA patient leakage current have an isolation of 5kV AC, an efficiency of up to 89% as well as a standard input voltage ratio of 4:1. The types REM30-2405SW and REM30-2412SW of this series are available in our web shop.

  • single output
  • output: 30W
  • maximal voltage accuracy (load 100%): ±1%
  • temperature range: -40 to +105°C
  • weight: 32g
Recom REM30-W series

REM30-2405SW

112621 REM30-2405SW REM30-2405SW Recom DC/DC converter series REM30-W. DC/DC converters by Recom in a 2''x1'' housing, suited for medical applications and direct PCB mounting. These devices with a working voltage insulation (2MOPP, 250V AC) and 2µA patient leakage current have an isolation of 5kV AC, an efficiency of up to 89% as well as a standard input voltage ratio of 4:1. The types REM30-2405SW and REM30-2412SW of this series are available in our web shop. single outputoutput: 30Wmaximal voltage accuracy (load 100%): ±1%temperature range: -40 to +105°Cweight: 32g

Specifications

manufacturer
Manufacturer's name REM30-2405SW
Input voltage [V] 9...36
Output voltage [V] 5
Output current range [mA] 6000
Efficiency [%] 88
Ripple [mVp-p] 50
Data Sheet

Unit price

111,59 €

Stock: 18
Further delivery:
CW 07/2025
