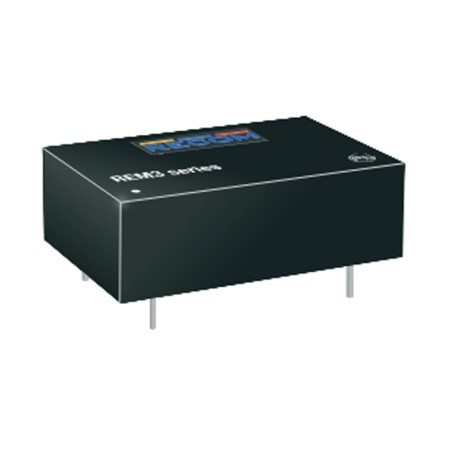

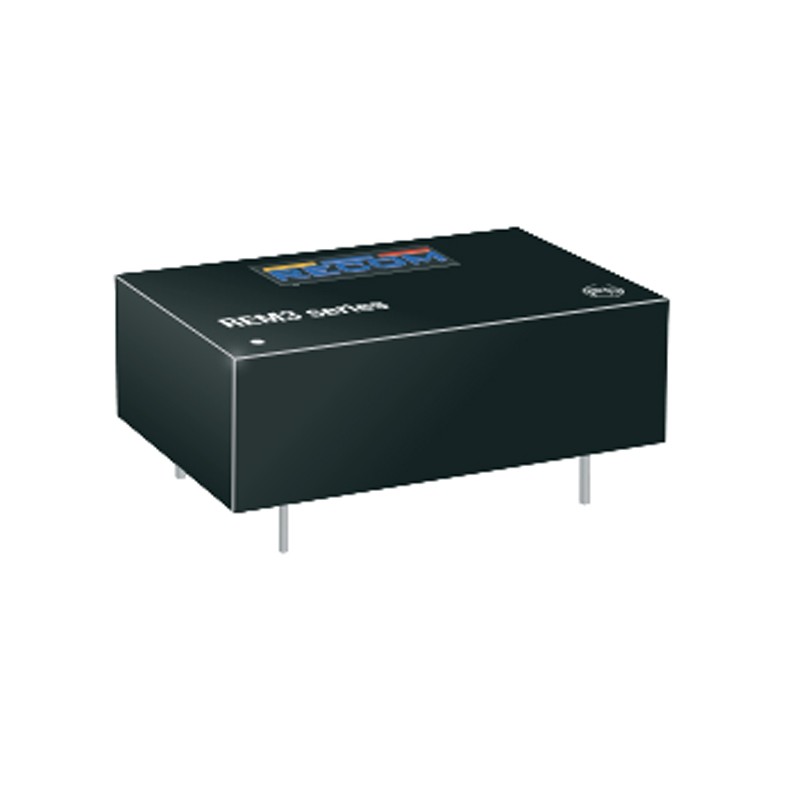

REM3-0505S/A/CTRL

Recom DC/DC converters series REM3

These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM3-_/_W_), furthermore they are available in a type with a control-pin-option (REM3-_/CTRL). We offer the following types of this Recom series: REM3-0505S/A, REM3-0505S/A/CTRL, REM3-0515D/A, REM3-1205S/A, REM3-2405SW/A, REM3-2412DW/A, and REM3-2412DW/A/CTRL.

  • single output (REM3-_S), dual output (REM3-_D)
  • maximal output voltage tolerance (at 100% load): ±1%
  • maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V)
  • Iisolation voltage: 5000V AC
  • housing temperature: -40 to +105°C
  • weight: 14g
REM3-0505S/A/CTRL, Recom DC/DC converters, 3W, DIP/DIL24 housing, medical, REM3 series

REM3-0505S/A/CTRL

247080 REM3-0505S/A/CTRL REM3-0505S/A/CTRL Recom DC/DC converters series REM3. These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM3-_/_W_), furthermore they are available in a type with a control-pin-option (REM3-_/CTRL). We offer the following types of this Recom series: REM3-0505S/A, REM3-0505S/A/CTRL, REM3-0515D/A, REM3-1205S/A, REM3-2405SW/A, REM3-2412DW/A, and REM3-2412DW/A/CTRL. single output (REM3-_S), dual output (REM3-_D) maximal output voltage tolerance (at 100% load): ±1% maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V) Iisolation voltage: 5000V AC housing temperature: -40 to +105°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM3-0505S/A/CTRL
Output voltage [V] 5
Input voltage range [V] 5
Output current range [mA] 600
Efficiency [%] 84,5
Data Sheet

Unit price

57,49 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 7 units or
multiples of 7.
