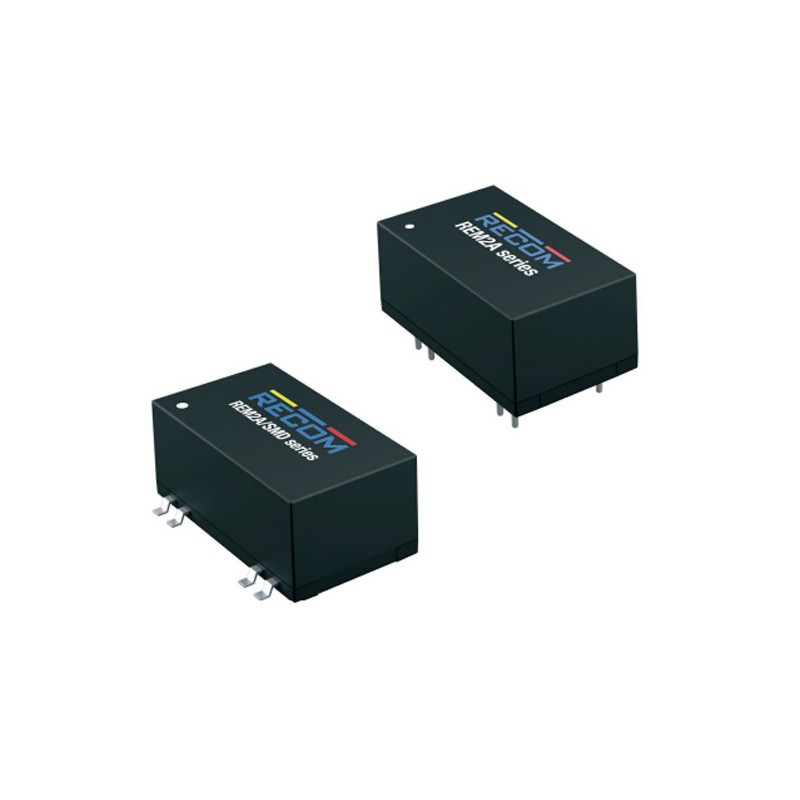

REM2A-0505S/SMD

Recom DC/DC converters series REM2A

DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These voltage converters confirm with the safety and EMV norms EN 62368-1, UL 62368-1, EN 60601-1, ANSI/AAMI ES 60601-1, EN 60601-1-2, EN 55011, EN 61204-3, and EN 55032 class B. We offer the following types of this Recom series: REM2A-0505S, REM2A-1205S, REM2A-2405S, REM2A-0505S/SMD, REM2A-1205S/SMD, REM2A-2405S/SMD, REM2A-0512S, REM2A-1212S, REM2A-0512S/SMD, and REM2A-1212S/SMD.

  • single output
  • current: 2W
  • output voltage tolerance: ±1%
  • maximal ripple quality: 50mVp-p
  • isolation voltage (I/P-O/P): 5000 V DC
  • operating temperature: -40 to +105°C
  • dimensions: 24,3x14,4x10,2 mm
  • weight: 7g

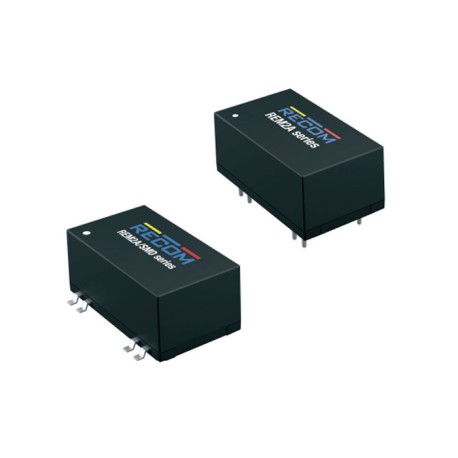

REM2A-0505S/SMD, Recom DC/DC converter modules, 2W, SMD, DIP16 housing, REM2A series

REM2A-0505S/SMD

248592 REM2A-0505S/SMD REM2A-0505S/SMD Recom DC/DC converters series REM2A. DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These voltage converters confirm with the safety and EMV norms EN 62368-1, UL 62368-1, EN 60601-1, ANSI/AAMI ES 60601-1, EN 60601-1-2, EN 55011, EN 61204-3, and EN 55032 class B. We offer the following types of this Recom series: REM2A-0505S, REM2A-1205S, REM2A-2405S, REM2A-0505S/SMD, REM2A-1205S/SMD, REM2A-2405S/SMD, REM2A-0512S, REM2A-1212S, REM2A-0512S/SMD, and REM2A-1212S/SMD. single output current: 2W output voltage tolerance: ±1% maximal ripple quality: 50mVp-p isolation voltage (I/P-O/P): 5000 V DC operating temperature: -40 to +105°C dimensions: 24,3x14,4x10,2 mm weight: 7g

Specifications

manufacturer
Manufacturer's name REM2A-0505S/SMD
Output voltage [V] 5
Input voltage range [V] 4,5...12
Efficiency [%] 78
Output current [A] 0,4
Data Sheet

Unit price

29,79 €

Stock: 10
Further delivery:
CW 07/2025
