REM20-2405SW

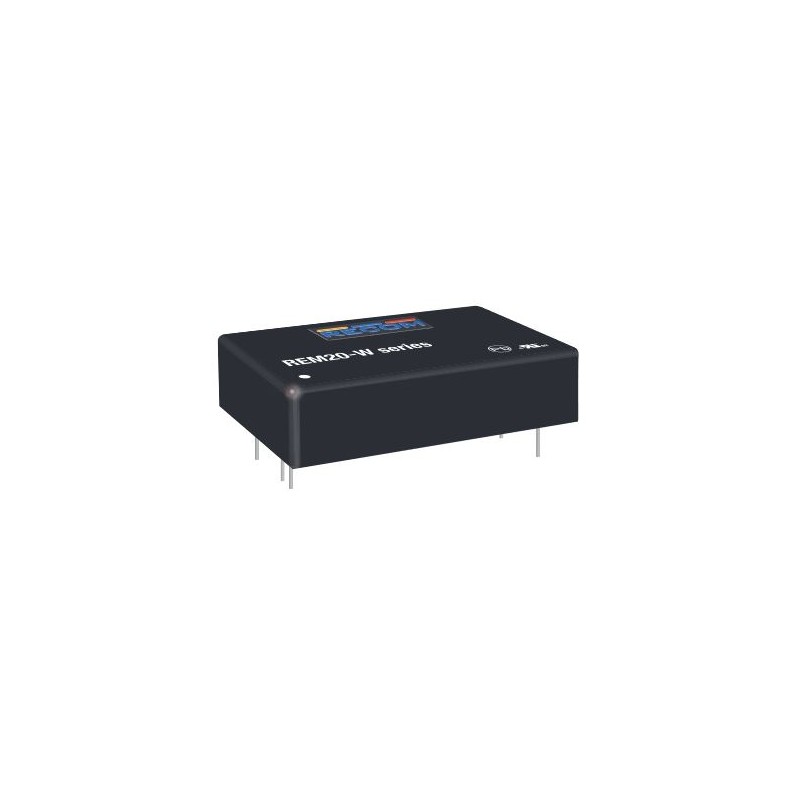

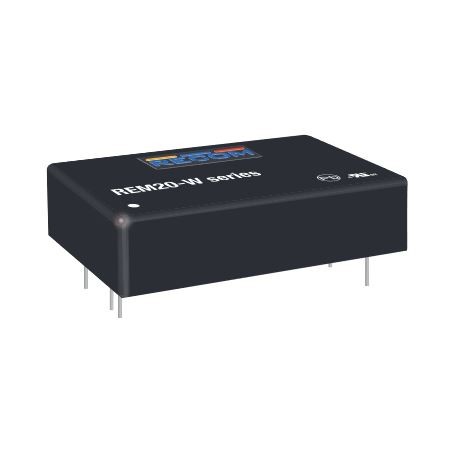

Recom DC/DC converter series REM20-W

DC/DC converters by Recom with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current. These devices in a 1,6''x1'' housing have a standard input voltage ratio of 4:1, an isolation of 5kV AC as well as an efficiency of up to 89,5%. They are suitable for medical applications and for direct PCB mounting. We offer the types REM20-2405SW, REM20-2412SW, REM20-4805SW, REM20-4812SW with a single output as well as the type REM20-4815DW with a dual output.

  • single & dual output
  • output: 20W
  • maximal voltage accuracy (load 100%): ±1%
  • temperature range: -40 to +105°C
  • weight: 24g
Recom REM20-W series

REM20-2405SW

112616 REM20-2405SW REM20-2405SW Recom DC/DC converter series REM20-W. DC/DC converters by Recom with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current. These devices in a 1,6''x1'' housing have a standard input voltage ratio of 4:1, an isolation of 5kV AC as well as an efficiency of up to 89,5%. They are suitable for medical applications and for direct PCB mounting. We offer the types REM20-2405SW, REM20-2412SW, REM20-4805SW, REM20-4812SW with a single output as well as the type REM20-4815DW with a dual output. single & dual outputoutput: 20Wmaximal voltage accuracy (load 100%): ±1%temperature range: -40 to +105°Cweight: 24g

Specifications

manufacturer
Manufacturer's name REM20-2405SW
Input voltage [V] 9...36
Output voltage [V] 5
Output current range [mA] 4000
Efficiency [%] 87
Ripple [mVp-p] 50
Data Sheet

Unit price

85,89 €

Stock: 10
Further delivery:
CW 11/2025
