REM2-2405S

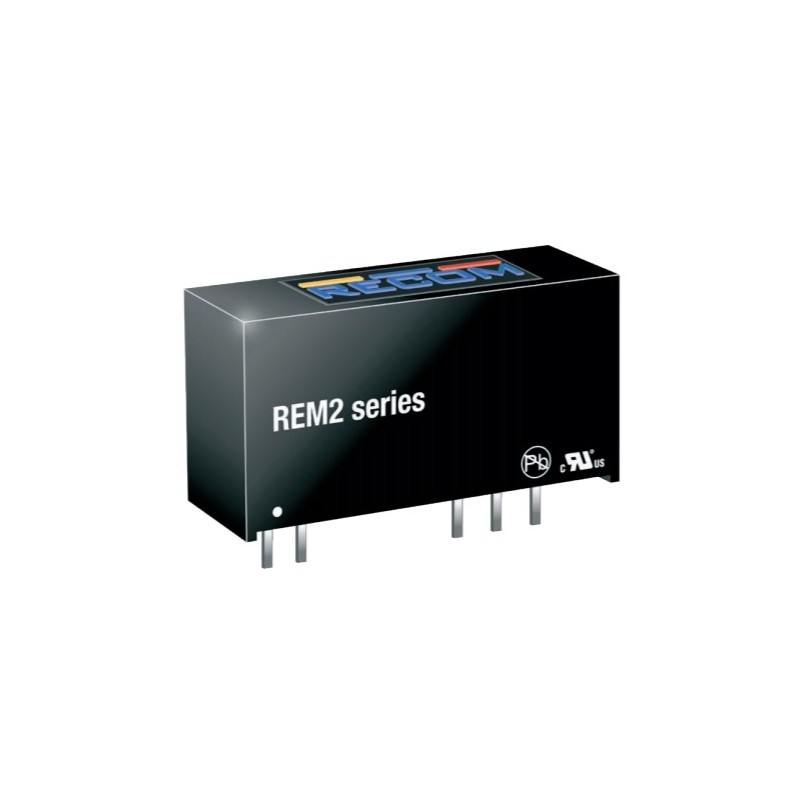

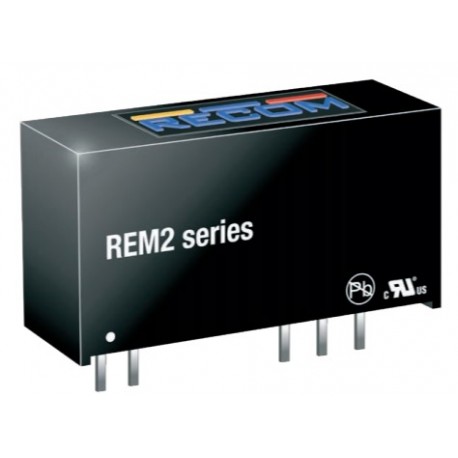

Recom DC/DC converter series REM2

DC/DC converters in a SIL8 housing for direct PCB mounting. According to EN-60601 these devices are suitable for medical technology and have an isolation voltage of 2MOPP/250V AC at 5000m. We offer the following types of this Recom series: REM2-3.33.3S, REM2-0505S, REM2-2405S and REM2-0505D.

  • single (REM2-_S) or dual output (REM2-_D)
  • power: 2W
  • voltage accuracy: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage (I/P-O/P): 5200V DC
  • operating temperature: -40 to +80°C
  • dimensions: 23x8x12,2mm
  • weight: 4,4g
REM2-2405S, Recom DC/DC converters, 2W, for medical technology, SIL8 housing, REM2 series

REM2-2405S

118093 REM2-2405S REM2-2405S Recom DC/DC converter series REM2. DC/DC converters in a SIL8 housing for direct PCB mounting. According to EN-60601 these devices are suitable for medical technology and have an isolation voltage of 2MOPP/250V AC at 5000m. We offer the following types of this Recom series: REM2-3.33.3S, REM2-0505S, REM2-2405S and REM2-0505D. single (REM2-_S) or dual output (REM2-_D)power: 2Wvoltage accuracy: ±5%maximal ripple and noise: 150mVppwithstand voltage (I/P-O/P): 5200V DCoperating temperature: -40 to +80°Cdimensions: 23x8x12,2mmweight: 4,4g

Specifications

manufacturer
Manufacturer's name REM2-2405S
Input voltage [V] 24
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 79
Data Sheet

Unit price

21,29 €

Stock: 8
Further delivery:
CW 13/2025
