REM15-2412SW

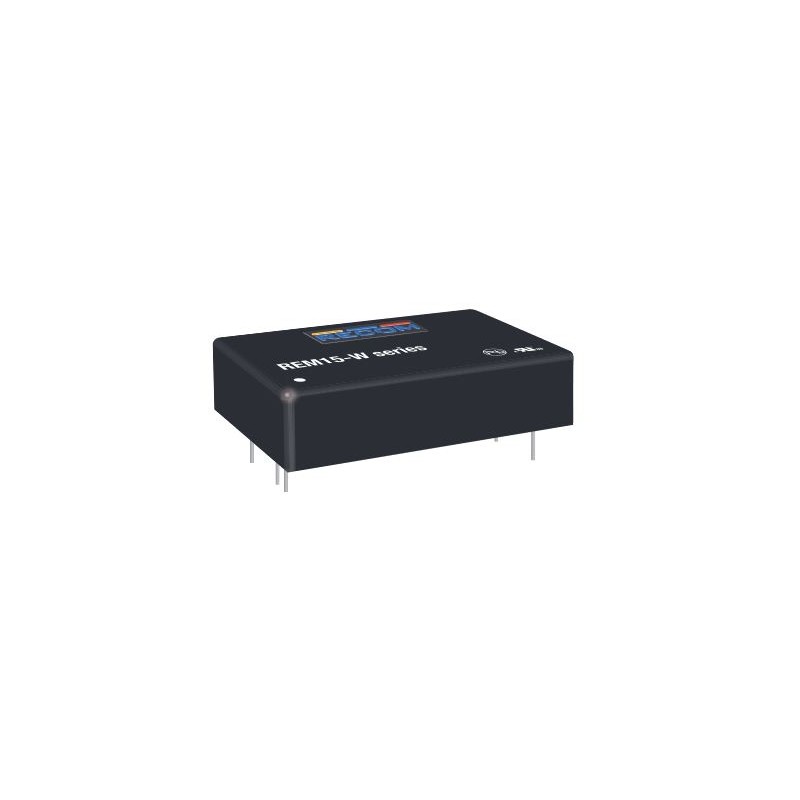

Recom DC/DC converter series REM15-W

DC/DC converters by Recom in a 1,6''x1'' housing. These devices with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current are suited for direct PCB mounting and medical applications. They have an efficiency of up to 88,5%, an isolation of 5kV AC and a standard input voltage ratio of 4:1. The types REM15‑2405SW and REM15‑2412SW are available in our web shop.

  • single output
  • output: 15W
  • maximal voltage accuracy (load 100%): ±1%
  • temperatur range: -40 to +105°C
  • weight: 24g

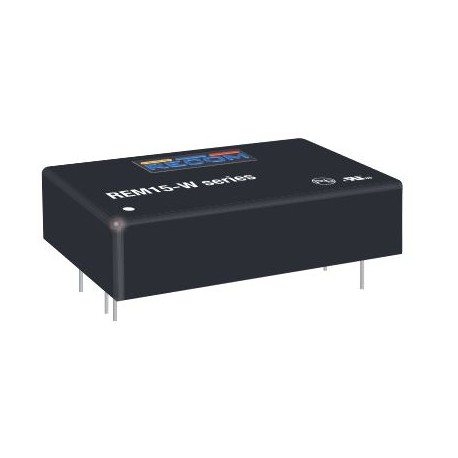

Recom REM15-W series

REM15-2412SW

112615 REM15-2412SW REM15-2412SW Recom DC/DC converter series REM15-W. DC/DC converters by Recom in a 1,6''x1'' housing. These devices with a working voltage isolation (2MOPP, 250V AC) and 2µA patient leakage current are suited for direct PCB mounting and medical applications. They have an efficiency of up to 88,5%, an isolation of 5kV AC and a standard input voltage ratio of 4:1. The types REM15‑2405SW and REM15‑2412SW are available in our web shop. single outputoutput: 15Wmaximal voltage accuracy (load 100%): ±1%temperatur range: -40 to +105°Cweight: 24g

Specifications

manufacturer
Manufacturer's name REM15-2412SW
Input voltage [V] 9...36
Output voltage [V] 12
Output current range [mA] 1250
Efficiency [%] 88,5
Ripple [mVp-p] 75
Data Sheet

Unit price

70,89 €

Stock: 13
Further delivery:
CW 11/2025
