REM10-2412SW/A

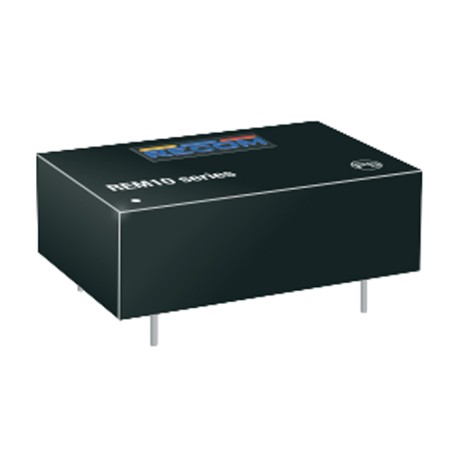

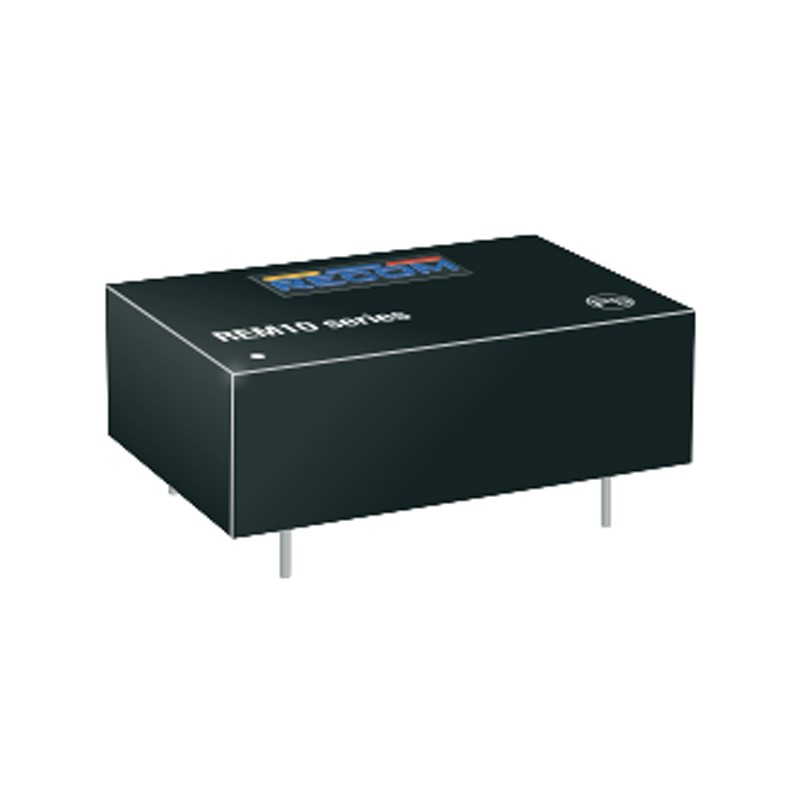

Recom DC/DC converters series REM10

These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM10-_/_W_), furthermore they are available in a type with a control-pin-option (REM10-_/CTRL). We offer the following types of this Recom series: REM10-0505S/A, REM10-2405SW/A, REM10-2405SW/A/CTRL, REM10-2412DW/A, REM10-2412SW/A, and REM10-2415DW/A.

  • single output (REM10-_S), dual output (REM10-_D)
  • maximal output voltage tolerance (at 100% load): ±1%
  • maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V)
  • Iisolation voltage: 5000V AC
  • housing temperature: -40 to +105°C
  • weight: 14g
REM10-2412SW/A, Recom DC/DC converters, 10W, DIP/DIL24 housing, medical, REM10 series

REM10-2412SW/A

247120 REM10-2412SW/A REM10-2412SW/A Recom DC/DC converters series REM10. These DC/DC converter modules in a DIP/DIL24 housing are made for PCB mounting. These devices are suitable for medical application acording to EN-60601-1 and have a continuous short circuit protection. They have a input voltage ratio of 2:1 (standard) respectively of 4:1 (REM10-_/_W_), furthermore they are available in a type with a control-pin-option (REM10-_/CTRL). We offer the following types of this Recom series: REM10-0505S/A, REM10-2405SW/A, REM10-2405SW/A/CTRL, REM10-2412DW/A, REM10-2412SW/A, and REM10-2415DW/A. single output (REM10-_S), dual output (REM10-_D) maximal output voltage tolerance (at 100% load): ±1% maximal ripple quality: 30mVpp (5V), 40mVpp (12,15V), 50mVpp (24V) Iisolation voltage: 5000V AC housing temperature: -40 to +105°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM10-2412SW/A
Output voltage [V] 12
Input voltage range [V] 24
Output current range [mA] 830
Efficiency [%] 86
Data Sheet

Unit price

74,99 €

Stock: 0
Further delivery:
CW 49/2024

Minimum order quantity 7 units or
multiples of 7.
