REM1-3.305S

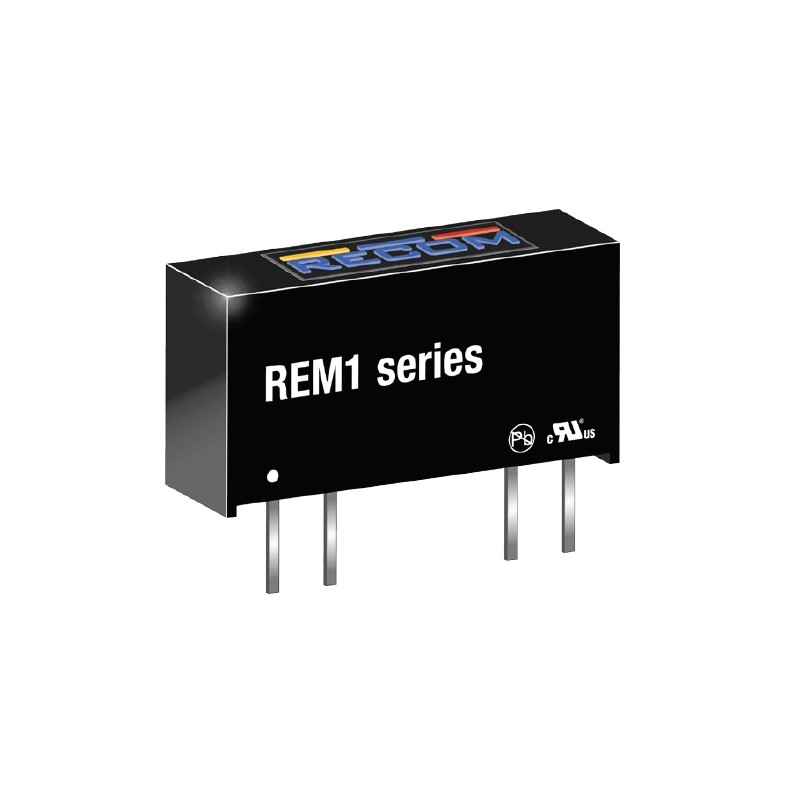

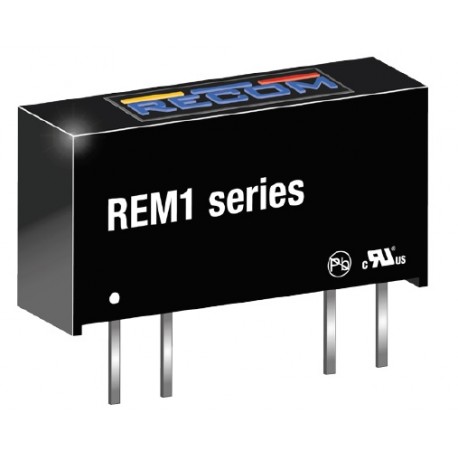

Recom DC/DC converter series REM1

DC/DC converter modules in a SIP/SIL7 housing with 1W. These devices are suitable for medical applications (2x MOPP at 250V AC). They have a withstand voltage of 5,2kV DC at 250V AC abd their efficiency is up to 81%. We offer the following types of this Recom series: REM1-3.33.3S, REM1-3.305S, REM1-0505S, REM1-1205S and REM1-2405S.

  • single output
  • voltage accuracy (load 100%): ±5%
  • maximal ripple & noise.: 75mVpp
  • operating temperature: -40 to +85°C
  • weight: 2.6
Recom REM1 series

REM1-3.305S

110577 REM1-3.305S REM1-3.305S Recom DC/DC converter series REM1. DC/DC converter modules in a SIP/SIL7 housing with 1W. These devices are suitable for medical applications (2x MOPP at 250V AC). They have a withstand voltage of 5,2kV DC at 250V AC abd their efficiency is up to 81%. We offer the following types of this Recom series: REM1-3.33.3S, REM1-3.305S, REM1-0505S, REM1-1205S and REM1-2405S. single output voltage accuracy (load 100%): ±5% maximal ripple & noise.: 75mVpp operating temperature: -40 to +85°C weight: 2.6

Specifications

manufacturer
Manufacturer's name REM1-3.305S
Input voltage [V] 3,3
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 81
Data Sheet

Unit price

15,49 €

Stock: 27
Further delivery:
CW 09/2025
