REDIIN480-48

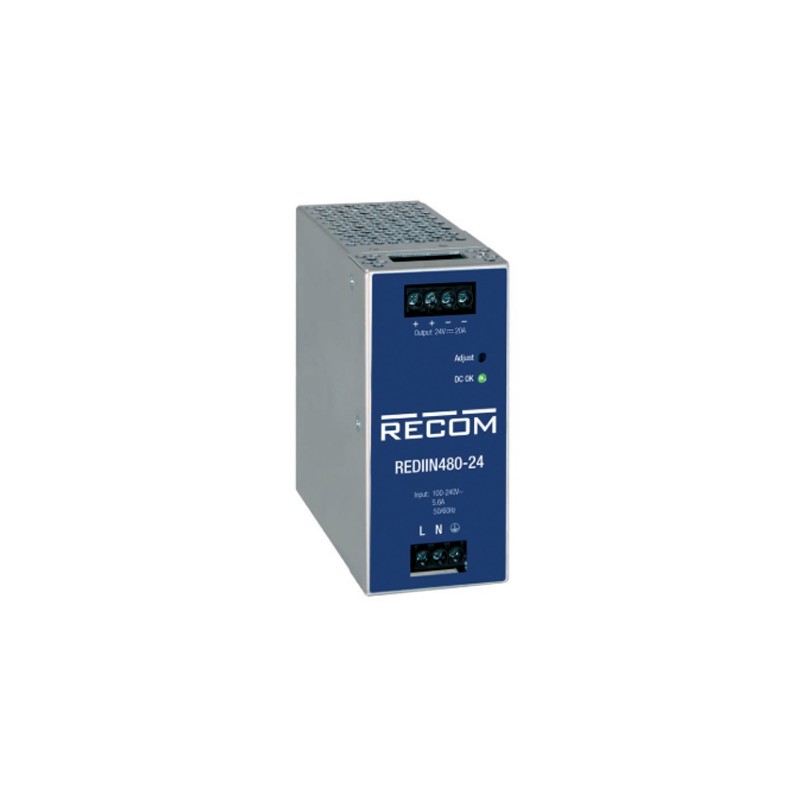

Recom DIN rail switching power supplies series REDIIN480

Switching power supplies in a enclosed type with 480W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN55032 class B, EN 61204-3, EN 62368-1, UL 62368-1, UL 61010-1, and EN 61010-1. We offer the following types of this Recom series: REDIIN480-24 and REDIIN480-48.

  • single output
  • power: 480W
  • input voltage: 90 to 264V
  • inrush current: 40A
  • discharge current: 1,5mA
  • isolation voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 123,6x56x116,8mm
  • weight: 870g
REDIIN480-48, Recom DIN rail mounting switching power supplies, 480W, REDIIN480 series

REDIIN480-48

246997 REDIIN480-48 REDIIN480-48 Recom DIN rail switching power supplies series REDIIN480. Switching power supplies in a enclosed type with 480W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN55032 class B, EN 61204-3, EN 62368-1, UL 62368-1, UL 61010-1, and EN 61010-1. We offer the following types of this Recom series: REDIIN480-24 and REDIIN480-48. single output power: 480W input voltage: 90 to 264V inrush current: 40A discharge current: 1,5mA isolation voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 123,6x56x116,8mm weight: 870g

Specifications

manufacturer
Manufacturer's name REDIIN480-48
Output voltage [V] 48
Efficiency [%] 93,5
Output current [A] 10
Output voltage tolerance: [%] 48...5
Output power [W] 480
Data Sheet

Unit price

119,59 €

Stock: 4
Further delivery:
CW 34/2025
