REDIIN240-48

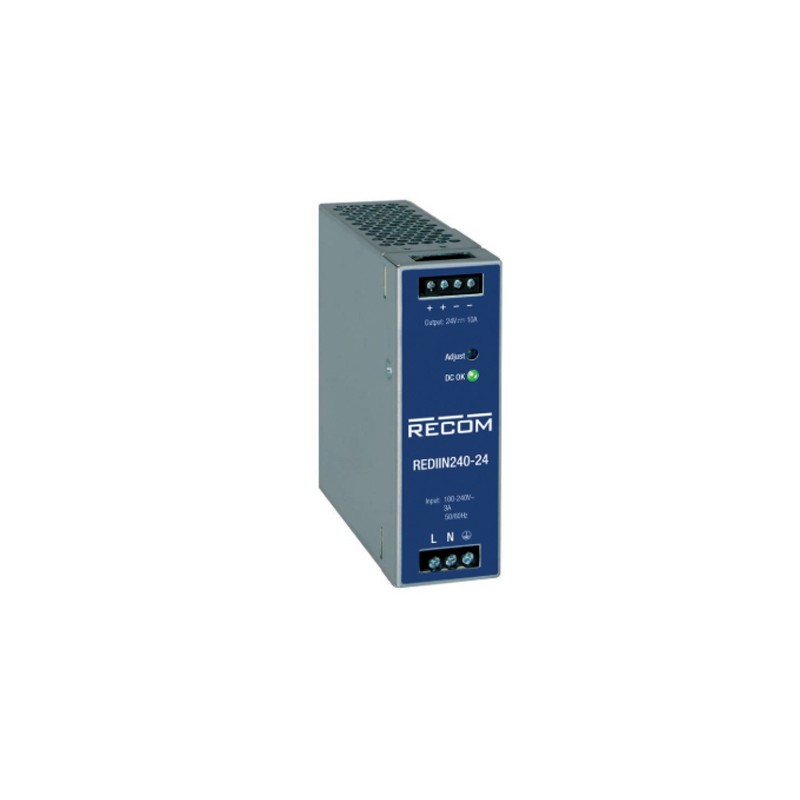

Recom DIN rail switching power supplies series REDIIN240

Switching power supplies in a enclosed type with 240W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN55032 class B, EN 61204-3, EN 62368-1, UL 62368-1, UL 61010-1, and EN 61010-1. We offer the following types of this Recom series: REDIIN240-24 and REDIIN240-48.

  • single output
  • power: 240W
  • input voltage: 90 to 264V AC
  • inrush current: 40A
  • discharge current: 0,75mA
  • isolation voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 123,6x40x116,8mm
  • weight: 620g

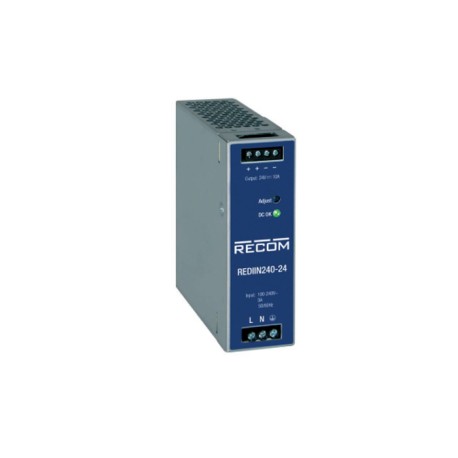

REDIIN240-48, Recom DIN rail switching power supplies, 240W, REDIIN240 series

REDIIN240-48

246995 REDIIN240-48 REDIIN240-48 Recom DIN rail switching power supplies series REDIIN240. Switching power supplies in a enclosed type with 240W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN55032 class B, EN 61204-3, EN 62368-1, UL 62368-1, UL 61010-1, and EN 61010-1. We offer the following types of this Recom series: REDIIN240-24 and REDIIN240-48. single output power: 240W input voltage: 90 to 264V AC inrush current: 40A discharge current: 0,75mA isolation voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 123,6x40x116,8mm weight: 620g

Specifications

manufacturer
Manufacturer's name REDIIN240-48
Output voltage [V] 48
Efficiency [%] 90,5
Output current [A] 5
Output voltage tolerance: [%] 43,2...52,8
Output power [W] 240
Data Sheet

Unit price

63,49 €

Stock: 5
Further delivery:
CW 34/2025
