REDIIN120-24

Recom DIN rail switching power supplies series REDIIN120

Switching power supplies in a enclosed type with 120W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN 62368-1, UL 62368-1, EN 61010-1, UL 61010-1, EN55032 class B, and EN 61204-3. We offer the following types of this Recom series: REDIIN120-12, REDIIN120-24, and REDIIN120-48.

  • single output
  • power: 120W
  • input voltage: 90 to 264V AC
  • inrush current: 35A
  • discharge current: 1mA
  • isolation voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • dimensions: 123,6x30x116,8mm
  • weight: 450g

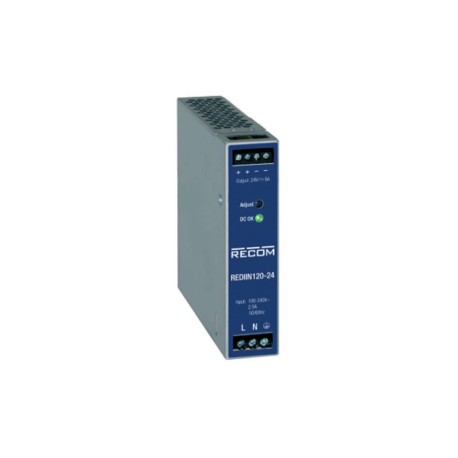

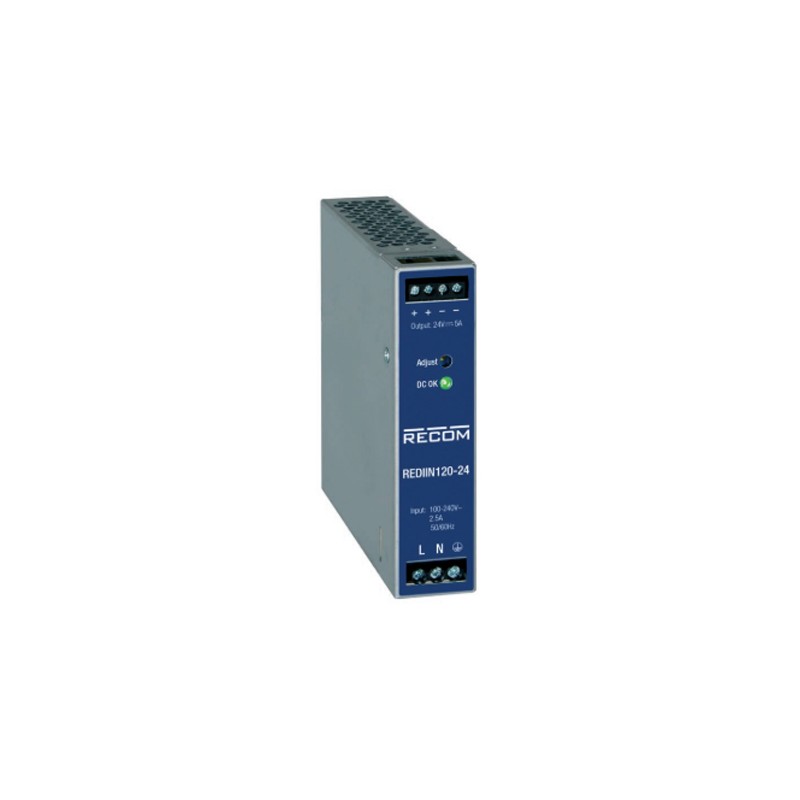

REDIIN120-24, Recom DIN rail switching power supplies, 120W, REDIIN120 series

REDIIN120-24

246992 REDIIN120-24 REDIIN120-24 Recom DIN rail switching power supplies series REDIIN120. Switching power supplies in a enclosed type with 120W, a programable output voltage, and a low off-load power. These devices are suitable for DIN rail mounting, and are protected against overtemperature, overvoltge, as well as short circuit. They conform with EN 62368-1, UL 62368-1, EN 61010-1, UL 61010-1, EN55032 class B, and EN 61204-3. We offer the following types of this Recom series: REDIIN120-12, REDIIN120-24, and REDIIN120-48. single output power: 120W input voltage: 90 to 264V AC inrush current: 35A discharge current: 1mA isolation voltage: 3000V AC operating temperature: -30 to +70°C dimensions: 123,6x30x116,8mm weight: 450g

Specifications

manufacturer
Manufacturer's name REDIIN120-24
Output voltage [V] 24
Efficiency [%] 88,5
Output current [A] 5
Output voltage tolerance: [%] 21,6...26,4
Output power [W] 120
Data Sheet

Unit price

36,49 €

Stock: 37
Further delivery:
CW 29/2025
