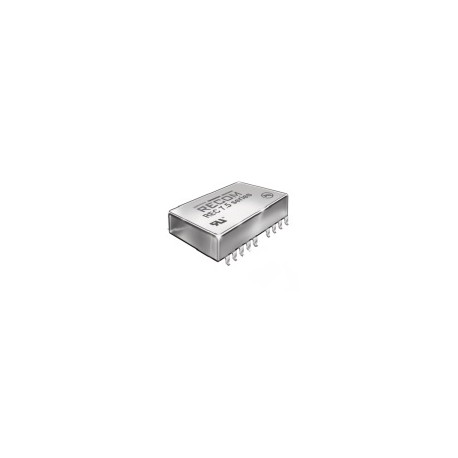

REC7.5-2405SRW/H2/A/M

Recom DC/DC converter series REC7.5

These modules possessing a DIP/DIL24-housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1, their isolation is 2kV AC and their efficiency is up to 86%. They are fitted with a continuous short circuit protection. The modules conform EN-60601-1 for medical applications. We are offering the following types by Recom: REC7.5-2405SRWH2AM and REC7.5-2415DRWH2AM.

  • single (REC7.5-_S) or dual output (REC7.5-_D)
  • output: 7,5W
  • output voltage tolerance (bei 100% Last): ±2%
  • maximal ripple and noise: 50mVpp
  • operating temperature: -40 to +71°C
  • weight: 16g
REC7.7-series

REC7.5-2405SRW/H2/A/M

109023 REC7.5-2405SRW/H2/A/M REC7.5-2405SRW/H2/A/M Recom DC/DC converter series REC7.5. These modules possessing a DIP/DIL24-housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1, their isolation is 2kV AC and their efficiency is up to 86%. They are fitted with a continuous short circuit protection. The modules conform EN-60601-1 for medical applications. We are offering the following types by Recom: REC7.5-2405SRWH2AM and REC7.5-2415DRWH2AM. single (REC7.5-_S) or dual output (REC7.5-_D) output: 7,5W output voltage tolerance (bei 100% Last): ±2% maximal ripple and noise: 50mVpp operating temperature: -40 to +71°C weight: 16g

Specifications

manufacturer
Manufacturer's name REC7.5-2405S...
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 1500
Efficiency [%] 79...82
Data Sheet

Unit price

25,89 €

Stock: 18
Further delivery:
CW 34/2025
