REC5K-2412SRW/H4/A/ADJ

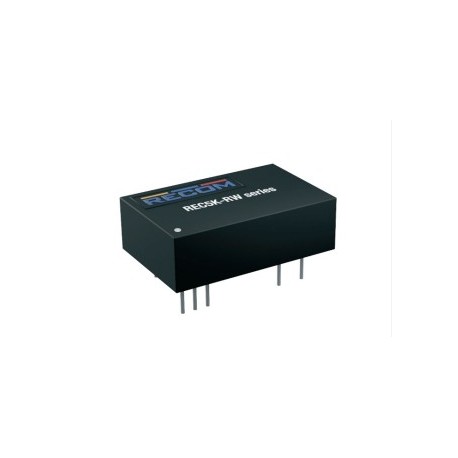

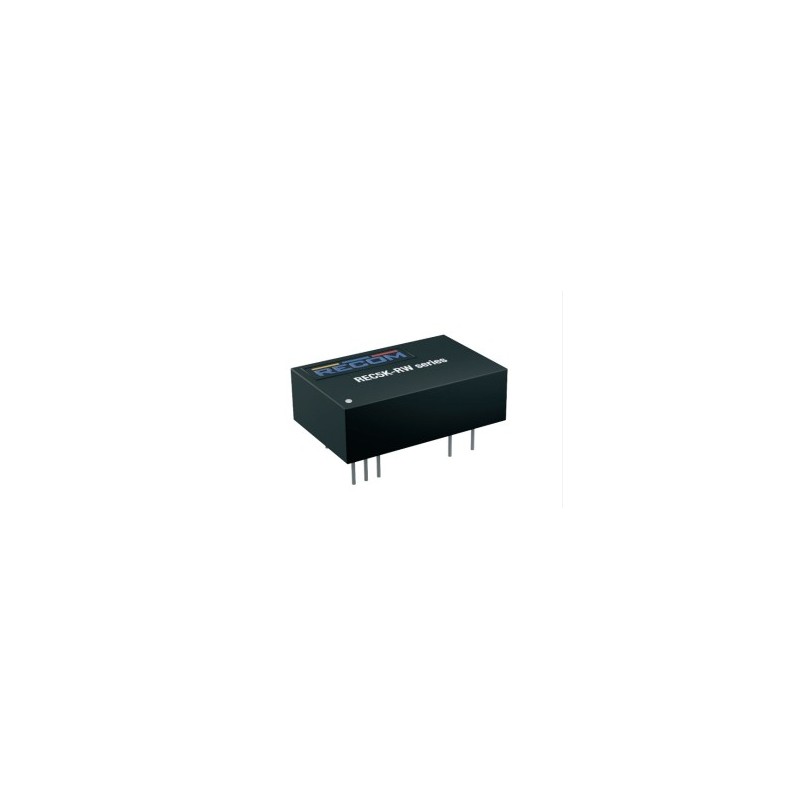

Recom DC/DC converter series REC5K-RW

DC/DC converter modules in a DIL24 housing with 5W, an input voltage ratio of 4:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit. They have a low ripple and noise, do not require a minimum load and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: REC5K-2405SRW/H4/A and REC5K-2412SRW/H4/ADJ.

  • single output
  • output: 5W
  • output voltage tolerance: ±2,5%
  • maximal ripple and noise: 80mVpp
  • withstand voltage I/P-O/P: 4000V DC
  • operating temperature: -40 to +100°C
  • dimensions: 32,1x20,6x10,2mm
  • weight: 12g
REC5K-2412SRW/H4/A/ADJ, Recom DC/DC converters, 5W, DIL24 housing, REC5K-RW series

REC5K-2412SRW/H4/A/ADJ

247267 REC5K-2412SRW/H4/A/ADJ REC5K-2412SRW/H4/A/ADJ Recom DC/DC converter series REC5K-RW. DC/DC converter modules in a DIL24 housing with 5W, an input voltage ratio of 4:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit. They have a low ripple and noise, do not require a minimum load and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: REC5K-2405SRW/H4/A and REC5K-2412SRW/H4/ADJ. single output output: 5W output voltage tolerance: ±2,5% maximal ripple and noise: 80mVpp withstand voltage I/P-O/P: 4000V DC operating temperature: -40 to +100°C dimensions: 32,1x20,6x10,2mm weight: 12g

Specifications

manufacturer
Manufacturer's name REC5K-2412SR...
Output voltage [V] 12
Input voltage range [V] 9...36
Output current [mA] 1212
Efficiency [%] 84
Data Sheet

Unit price

8,99 €

Stock: 14
Further delivery:
CW 01/2024
