REC5A-2405SW/H2/X1

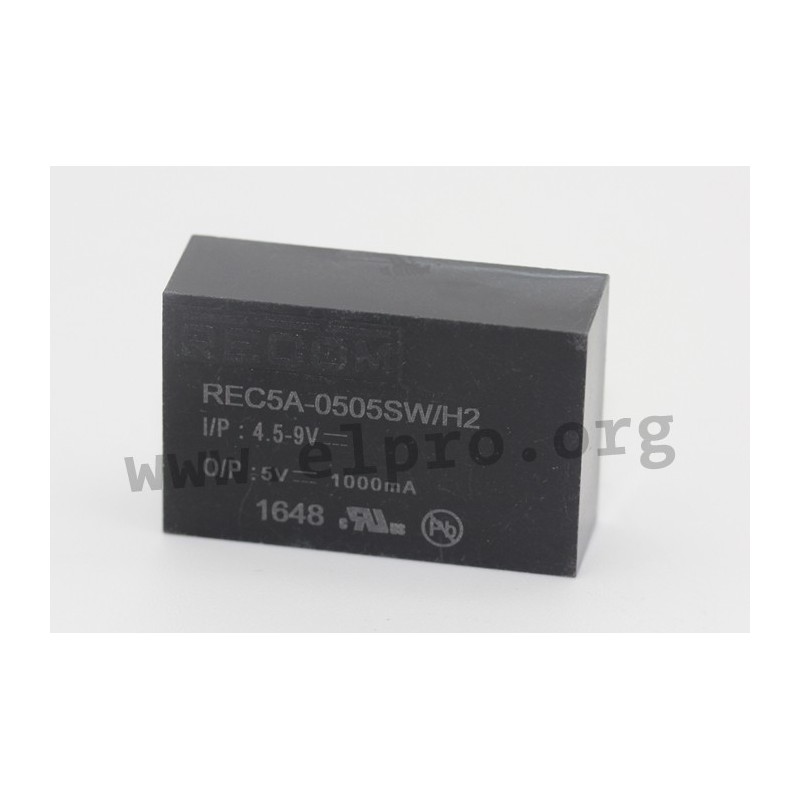

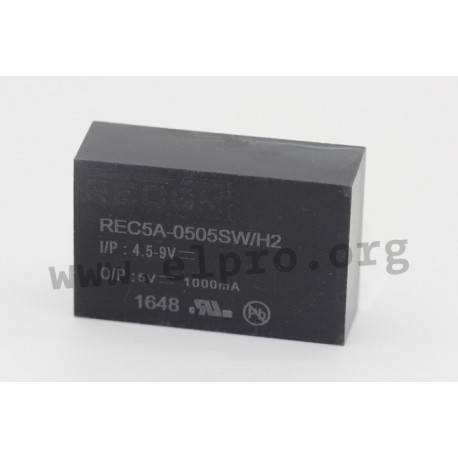

Recom DC/DC converter series REC5A

DC/DC converter modules in a DIL24 housing with 5W, a continuous short circuit protection and an undervoltage-lockout UVLO (REC5A-_/X1). These devices do not require a minimum load and have an efficiency of up to 81% as well as a withstand voltage of 2kV AC. They are suitable for direct PCB mounting and comply with EMI class A without external components as well as UL60950-1, UL62368-1, IEC62368-1, EN62368-1 and EN55032 class B. We offer the following types of this Recom series: REC5A-0505SW/H2, REC5A-2405SW/H2 and REC5A-2405SW/H2/X1.

  • single output
  • output: 5W
  • maximal output voltage tolerance: ±2% (at 100% load)
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 2000V DC
  • operating temperature: -40 to +68°C
  • weight: 13g
REC5A-2405SW/H2/X1, Recom DC/DC converters, 5W, DIL24 housing, REC5A series

REC5A-2405SW/H2/X1

237742 REC5A-2405SW/H2/X1 REC5A-2405SW/H2/X1 Recom DC/DC converter series REC5A. DC/DC converter modules in a DIL24 housing with 5W, a continuous short circuit protection and an undervoltage-lockout UVLO (REC5A-_/X1). These devices do not require a minimum load and have an efficiency of up to 81% as well as a withstand voltage of 2kV AC. They are suitable for direct PCB mounting and comply with EMI class A without external components as well as UL60950-1, UL62368-1, IEC62368-1, EN62368-1 and EN55032 class B. We offer the following types of this Recom series: REC5A-0505SW/H2, REC5A-2405SW/H2 and REC5A-2405SW/H2/X1. single output output: 5W maximal output voltage tolerance: ±2% (at 100% load) maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 2000V DC operating temperature: -40 to +68°C weight: 13g

Specifications

manufacturer
Manufacturer's name REC5A-2405SW/H2/X1
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 1000
Efficiency [%] 81
Data Sheet

Unit price

14,89 €

Stock: 16
Further delivery:
CW 13/2025
