REC5-1212SRW/H4/A

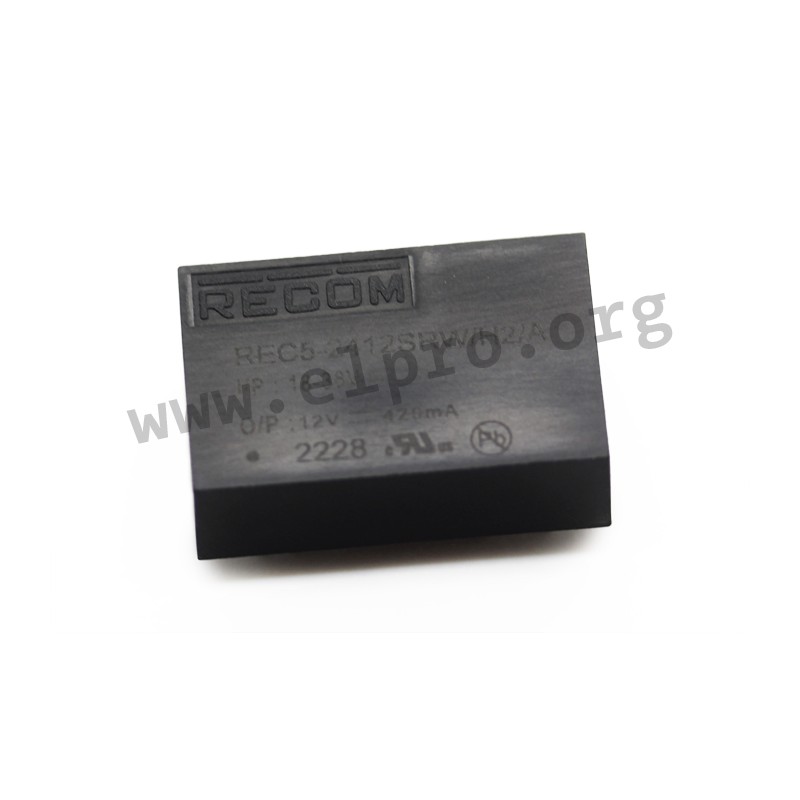

Recom DC/DC converter series REC5

These modules possess a DIL24 housing, a continuous short circuit protection and a feedback regulated output. They conform EN-60601-1 for medical applications. The modules are suitable for direct PCB mounting and their efficiency is up to 86%. We are offering various types of this Recom series.

  • REC5-_/_RW_: input voltage ratio 2:1
  • REC5-_/_RWZ_: input voltage ratio 4:1
  • REC5-_H2_: 2kV AC isolation
  • REC5-_H4_: 4kV AC isolation
  • REC5-_H6_: 6kV AC isolation
  • REC5-_S_: single output
  • REC5-_D_: dual output
  • maximal voltage accuracy (load 100%): ±2%
  • maximal ripple & noise: 50mVpp
  • operating temperature: -40 to +75°C
  • weight: 13g

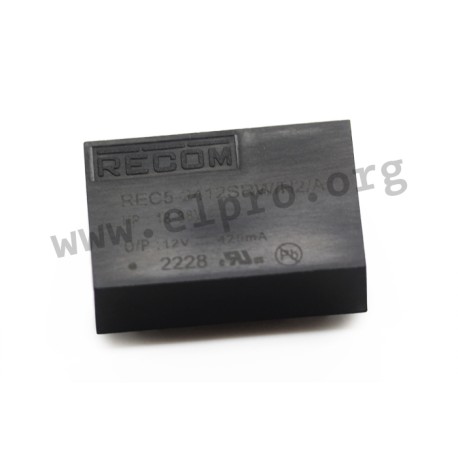

REC5-1212SRW/H4/A, Recom DC/DC converters, 5W, DIL24 housing, REC5 series

REC5-1212SRW/H4/A

247087 REC5-1212SRW/H4/A REC5-1212SRW/H4/A Recom DC/DC converter series REC5. These modules possess a DIL24 housing, a continuous short circuit protection and a feedback regulated output. They conform EN-60601-1 for medical applications. The modules are suitable for direct PCB mounting and their efficiency is up to 86%. We are offering various types of this Recom series. REC5-_/_RW_: input voltage ratio 2:1 REC5-_/_RWZ_: input voltage ratio 4:1 REC5-_H2_: 2kV AC isolation REC5-_H4_: 4kV AC isolation REC5-_H6_: 6kV AC isolation REC5-_S_: single output REC5-_D_: dual output maximal voltage accuracy (load 100%): ±2% maximal ripple & noise: 50mVpp operating temperature: -40 to +75°C weight: 13g

Specifications

manufacturer
Manufacturer's name REC5-1212SRW/H4/A
Input voltage [V] 9...18
Output voltage [V] 12
Output current range [mA] 1000
Efficiency [%] 84...85
Data Sheet

Unit price

25,09 €

Stock: 0
Further delivery:
CW 02/2025

Minimum order quantity 15 units or
multiples of 15.
