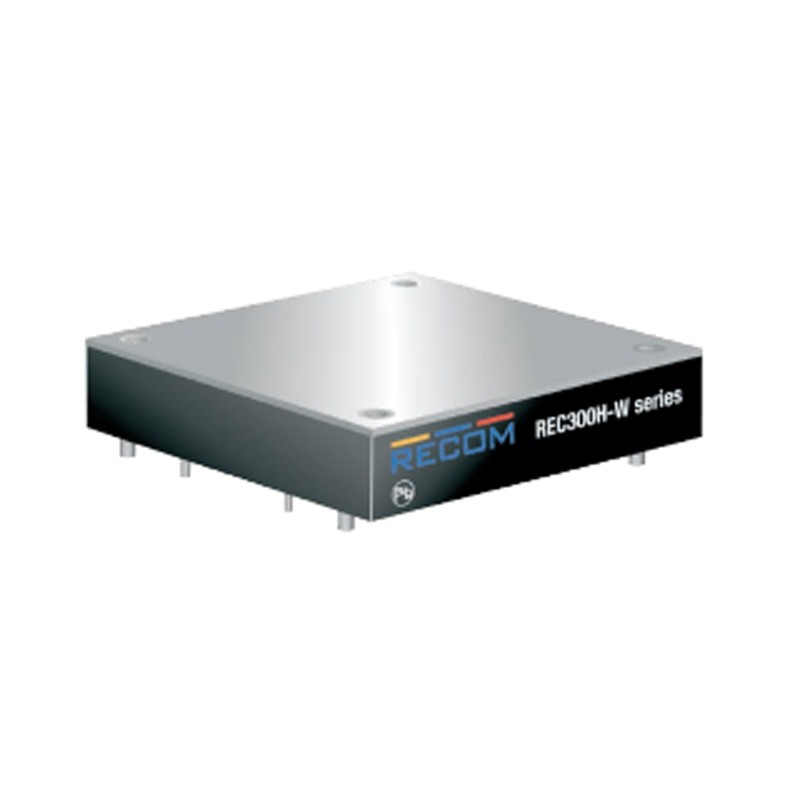

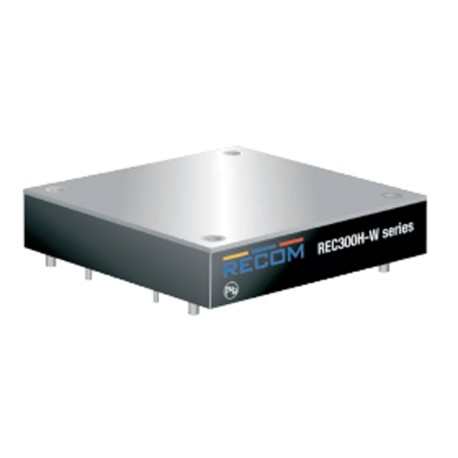

REC300H-2415SW

Recom DC/DC converters series REC300H-W

These DC/DC converter modules in a half brick housing have a programmable output voltage and are suitable for direct PCB mounting. They are protected against overload, over voltage, over temperature, and short circuit. Furthermore they are equiped with a remote on/off, as well as with sense- and trim-pins. We offer the following types of this recom series: REC300H-2412SW, REC300H-2415SW, REC300H-2424SW, and REC300H-2448SW.

  • single output
  • input voltage ratio: 4:1
  • output current: 300W
  • output voltage tolerance: ±1%
  • isolation voltage (I/P-O/P): 3000V DC
  • connection terminal: THT
  • operating temperature: -40 to +100°C
  • dimensions: 57,9x61x12,7mm
  • weight: 120g
REC300H-2415SW, Recom DC/DC converters, 300W, half brick housing, REC300H-W series

REC300H-2415SW

247163 REC300H-2415SW REC300H-2415SW Recom DC/DC converters series REC300H-W. These DC/DC converter modules in a half brick housing have a programmable output voltage and are suitable for direct PCB mounting. They are protected against overload, over voltage, over temperature, and short circuit. Furthermore they are equiped with a remote on/off, as well as with sense- and trim-pins. We offer the following types of this recom series: REC300H-2412SW, REC300H-2415SW, REC300H-2424SW, and REC300H-2448SW. single output input voltage ratio: 4:1 output current: 300W output voltage tolerance: ±1% isolation voltage (I/P-O/P): 3000V DC connection terminal: THT operating temperature: -40 to +100°C dimensions: 57,9x61x12,7mm weight: 120g

Specifications

manufacturer
Manufacturer's name REC300H-2415SW
Output voltage [V] 13,4...16,5
Input voltage range [V] 9...36
Efficiency [%] 87
Output current [A] 20
Ripple [mVp-p] 150
Data Sheet

Unit price

161,49 €

Stock: 0
Further delivery:
CW 20/2025

Minimum order quantity 7 units or
multiples of 7.
