REC20K-2412SZ

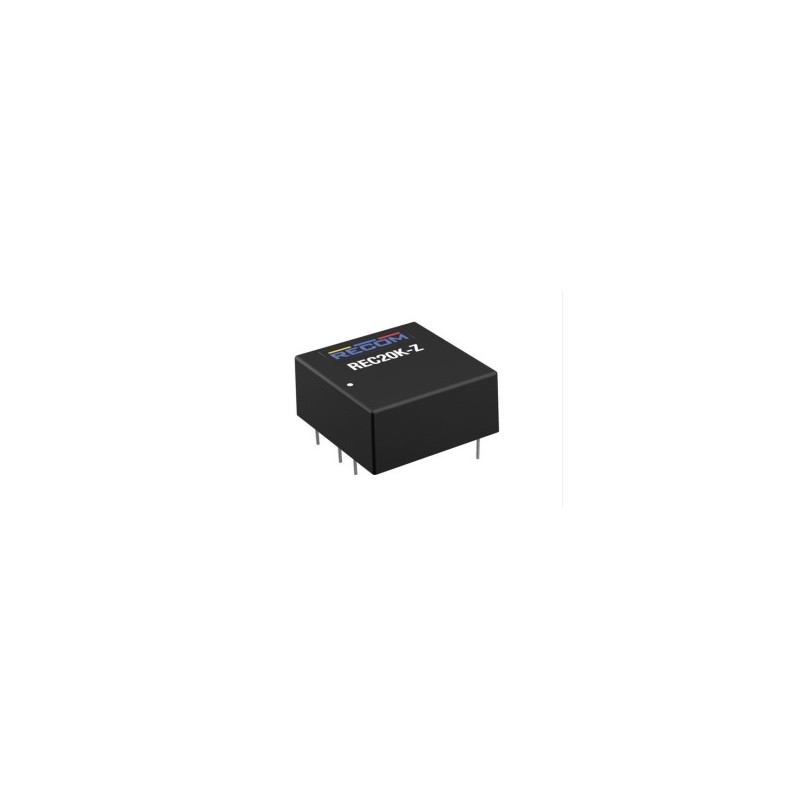

Recom DC/DC converters REC20K-Z

DC/DC converters in a 1"x1" housing, with 20W, and protected against overload, over voltage, as well as short circuit. These devices are equipped with a remote function and conform with EN62368-1, EN55032 class A, and EN55032 class B. We offer various types of this Recom series.

  • single (REC20K-_SZ), dual output (REC20K-_DZ)
  • input voltage ratio: 4:1
  • current: 20W
  • output current tolerance, max.: ±1%
  • isolation voltage (I/P-O/P): 2000V AC
  • operating temperature: -40 to +105°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 18g

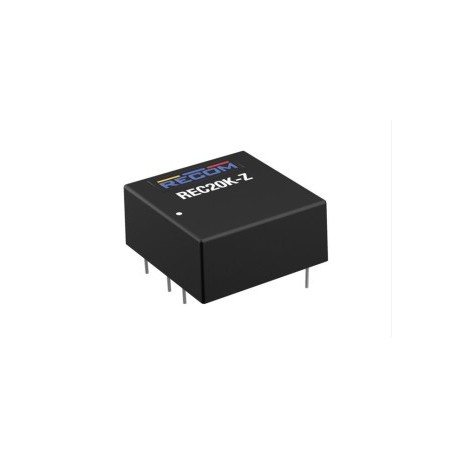

REC20K-2412SZ, Recom DC/DC converters, 20W, 1"x1" housing, REC20K-Z series

REC20K-2412SZ

247275 REC20K-2412SZ REC20K-2412SZ Recom DC/DC converters REC20K-Z. DC/DC converters in a 1"x1" housing, with 20W, and protected against overload, over voltage, as well as short circuit. These devices are equipped with a remote function and conform with EN62368-1, EN55032 class A, and EN55032 class B. We offer various types of this Recom series. single (REC20K-_SZ), dual output (REC20K-_DZ)  input voltage ratio: 4:1 current: 20W output current tolerance, max.: ±1% isolation voltage (I/P-O/P): 2000V AC operating temperature: -40 to +105°C dimensions: 25,4x25,4x10,2mm weight: 18g

Specifications

manufacturer
Manufacturer's name REC20K-2412SZ
Output voltage [V] 12
Input voltage range [V] 9...36
Efficiency [%] 87
Output current [A] 1,667
Ripple [mVp-p] 200
Data Sheet

Unit price

15,49 €

Stock: 0
Next incoming goods:
CW 05/2025
36 units

Further delivery:
CW 09/2025
