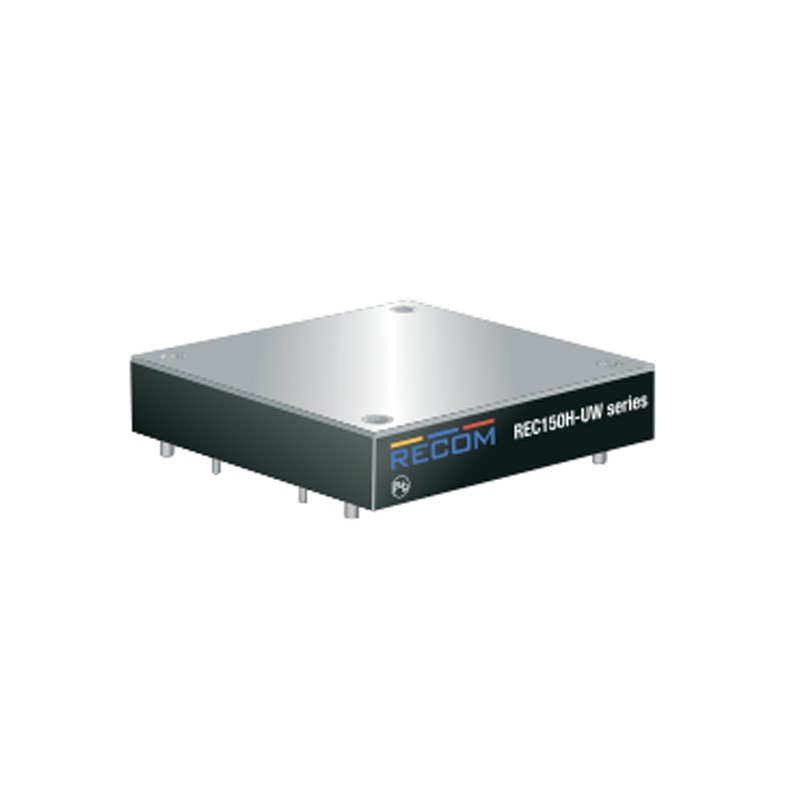

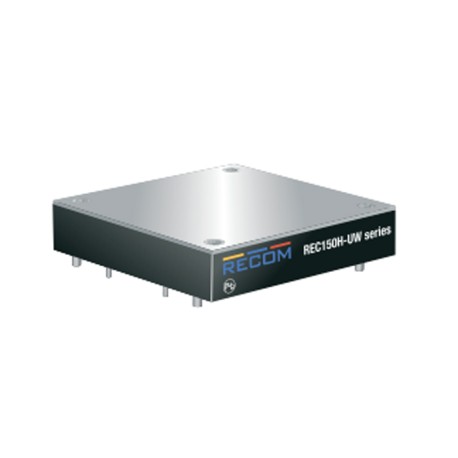

REC150H-4854SUW

Recom DC/DC converters series REC150H-UW

These DC/DC voltage converters in a half brick housing are suitable for direct PCB mounting, have a remote control, sense-, and trim-pins. They have a programmable output voltage, as well as  they are protected against over load, over temperature, over voltage, and short circuit. We offer the following types of this Recom series: REC150H-4812SUW, REC150H-4824SUW, REC150H-4828SUW, REC150H-4848SUW, and REC150H-4854SUW.

  • single output
  • input voltage ratio: 8:1
  • current: 150W
  • output voltage tolerance: ±1%
  • isolation voltage: 2500V DC
  • connection terminal: THT
  • operating temperature: -40 to +105°C
  • dimensions: 57,9x61x12,7mm
  • weight: 109g
REC150H-4854SUW, Recom DC/DC converters, 150W, half brick housing, REC150H-UW series

REC150H-4854SUW

247154 REC150H-4854SUW REC150H-4854SUW Recom DC/DC converters series REC150H-UW. These DC/DC voltage converters in a half brick housing are suitable for direct PCB mounting, have a remote control, sense-, and trim-pins. They have a programmable output voltage, as well as  they are protected against over load, over temperature, over voltage, and short circuit. We offer the following types of this Recom series: REC150H-4812SUW, REC150H-4824SUW, REC150H-4828SUW, REC150H-4848SUW, and REC150H-4854SUW. single output input voltage ratio: 8:1 current: 150W output voltage tolerance: ±1% isolation voltage: 2500V DC connection terminal: THT operating temperature: -40 to +105°C dimensions: 57,9x61x12,7mm weight: 109g

Specifications

manufacturer
Manufacturer's name REC150H-4854SUW
Output voltage [V] 48,6...59,4
Input voltage range [V] 9...75
Efficiency [%] 89
Output current [A] 2,778
Ripple [mVp-p] 240

Unit price

145,39 €

Stock: 0
Further delivery:
CW 20/2025

Minimum order quantity 7 units or
multiples of 7.
