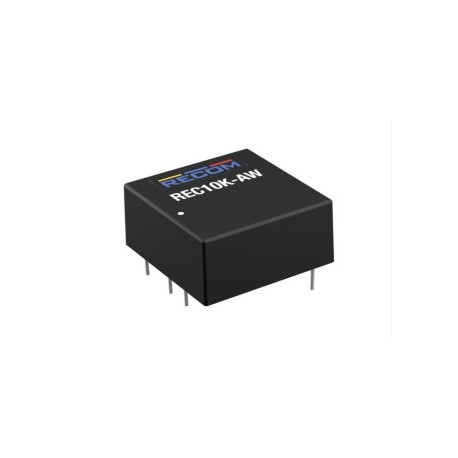

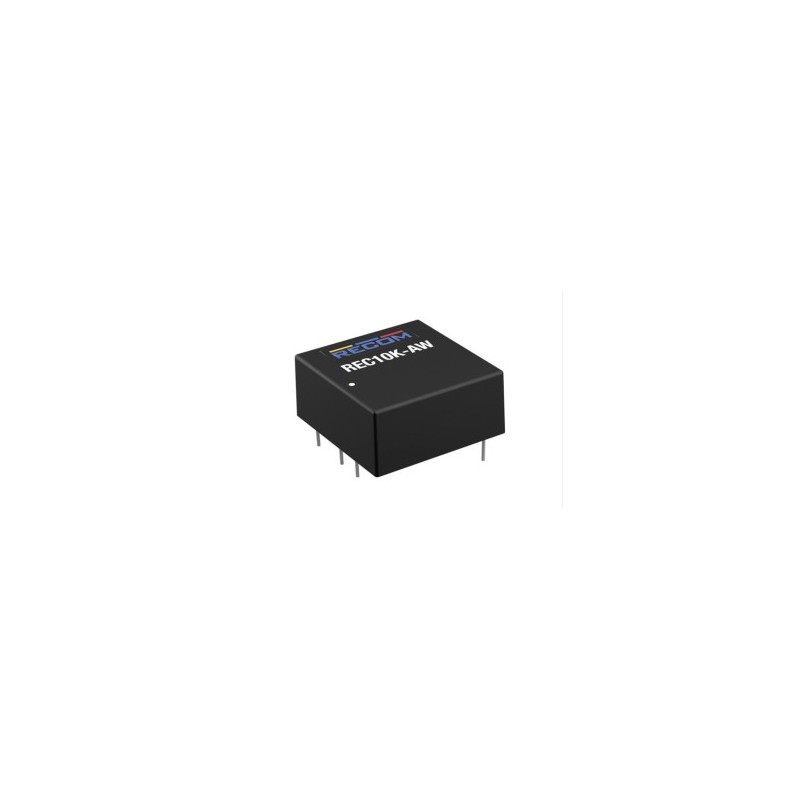

REC10K-4815DAW/H2

Recom DC/DC converters REC10K-AW

DC/DC converters in a 1"x1" housing, with 20W, and protected against overload, over voltage, as well as short circuit. These devices are equipped with a remote function and conform with EN62368-1 and EN55032 class B. We offer various types of this Recom series.

  • single (REC10K-_SAW/H), dual output (REC10K-_DAW/H)
  • input voltage ratio: 4:1
  • current: 10W
  • output current tolerance, max.: ±1%
  • isolation voltage (I/P-O/P): 1600V AC
  • operating temperature: -40 to +100°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 15g
REC10K-4815DAW/H2, Recom DC/DC converters, 10W, 1"x1" housing, REC10K-AW series

REC10K-4815DAW/H2

247483 REC10K-4815DAW/H2 REC10K-4815DAW/H2 Recom DC/DC converters REC10K-AW. DC/DC converters in a 1"x1" housing, with 20W, and protected against overload, over voltage, as well as short circuit. These devices are equipped with a remote function and conform with EN62368-1 and EN55032 class B. We offer various types of this Recom series. single (REC10K-_SAW/H), dual output (REC10K-_DAW/H)  input voltage ratio: 4:1 current: 10W output current tolerance, max.: ±1% isolation voltage (I/P-O/P): 1600V AC operating temperature: -40 to +100°C dimensions: 25,4x25,4x10,2mm weight: 15g

Specifications

manufacturer
Manufacturer's name REC10K-4815DAW/H2
Output voltage [V] ±15
Input voltage range [V] 18...75
Efficiency [%] 84
Output current [A] ±0,333
Ripple [mVp-p] 100
Data Sheet

Unit price

10,29 €

Stock: 0
Further delivery:
CW 51/2024

Minimum order quantity 18 units or
multiples of 18.
