> Power supplies>Voltage converters>DC/DC converters, PCB mounting>Recom DC/DC converters, 1W, SIL7 housing, RE series>REE-0505S

Manufacturers

REE-0505S

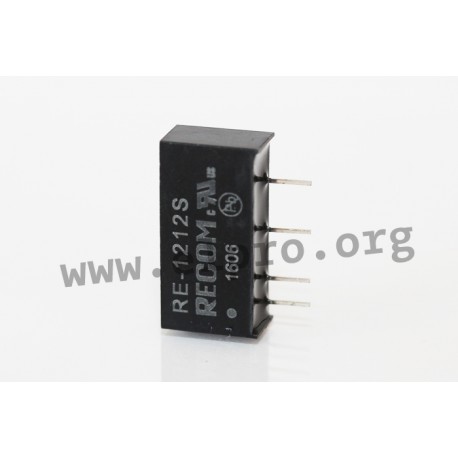

Recom DC/DC converter series RE

DC/DC converters in a SIP/SIL7 housing with 1W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and comply with industry standard pinout, ensuring easy integration into existing systems. With 1kV DC isolation and ±5% voltage accuracy (load range: 20 to 100%), these converters provide reliable performance even under challenging conditions. Operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RE-053.3S, RE-0505S, RE-0505S/P, RE-0512S, RE-0515S, RE-123.3S, RE-1205S, RE-1212S, RE-1505S, RE-1515S, RE-2405S, RE-2412S, RE-2415S and REE-0505S.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • operating temperature: -40 to +85°C
  • weight: 2,2g
Recom RE series

REE-0505S

42052 REE-0505S REE-0505S Recom DC/DC converter series RE. DC/DC converters in a SIP/SIL7 housing with 1W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and comply with industry standard pinout, ensuring easy integration into existing systems. With 1kV DC isolation and ±5% voltage accuracy (load range: 20 to 100%), these converters provide reliable performance even under challenging conditions. Operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RE-053.3S, RE-0505S, RE-0505S/P, RE-0512S, RE-0515S, RE-123.3S, RE-1205S, RE-1212S, RE-1505S, RE-1515S, RE-2405S, RE-2412S, RE-2415S and REE-0505S. single output output: 1W output voltage tolerance: ±5% operating temperature: -40 to +85°C weight: 2,2g

Specifications

manufacturer
Manufacturer's name REE-0505S
Case SIL 7 case
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 200
Efficiency [%] 70...76
Data Sheet

Unit price

3,19 €

Stock: 765
Further delivery:
CW 04/2025
