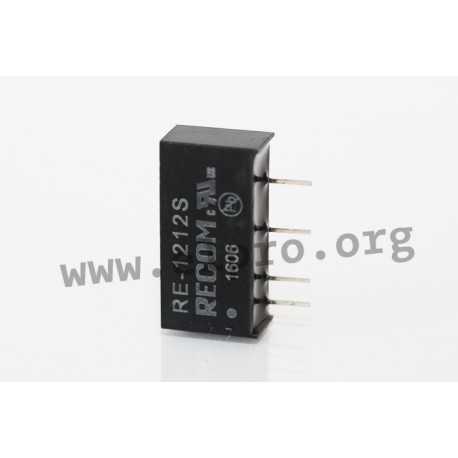

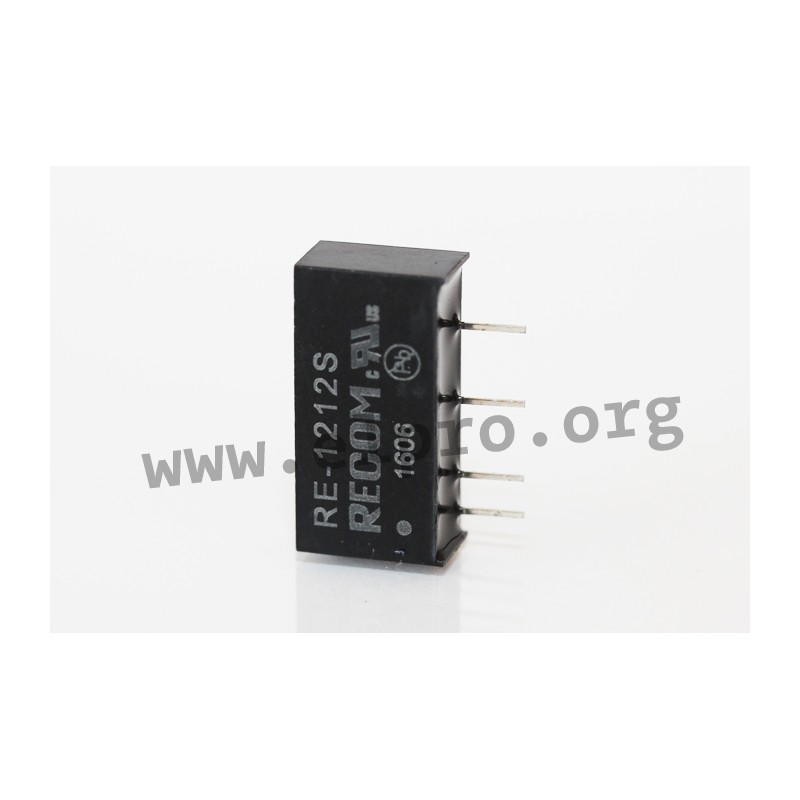

RE-1212S

Recom DC/DC converter series RE

DC/DC converters in a SIP/SIL7 housing with 1W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and comply with industry standard pinout, ensuring easy integration into existing systems. With 1kV DC isolation and ±5% voltage accuracy (load range: 20 to 100%), these converters provide reliable performance even under challenging conditions. Operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RE-053.3S, RE-0505S, RE-0505S/P, RE-0512S, RE-0515S, RE-123.3S, RE-1205S, RE-1212S, RE-1505S, RE-1515S, RE-2405S, RE-2412S, RE-2415S and REE-0505S.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • operating temperature: -40 to +85°C
  • weight: 2,2g
RE-1212S

RE-1212S

37165 RE-1212S RE-1212S Recom DC/DC converter series RE. DC/DC converters in a SIP/SIL7 housing with 1W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and comply with industry standard pinout, ensuring easy integration into existing systems. With 1kV DC isolation and ±5% voltage accuracy (load range: 20 to 100%), these converters provide reliable performance even under challenging conditions. Operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RE-053.3S, RE-0505S, RE-0505S/P, RE-0512S, RE-0515S, RE-123.3S, RE-1205S, RE-1212S, RE-1505S, RE-1515S, RE-2405S, RE-2412S, RE-2415S and REE-0505S. single output output: 1W output voltage tolerance: ±5% operating temperature: -40 to +85°C weight: 2,2g

Specifications

manufacturer
Manufacturer's name RE-1212S

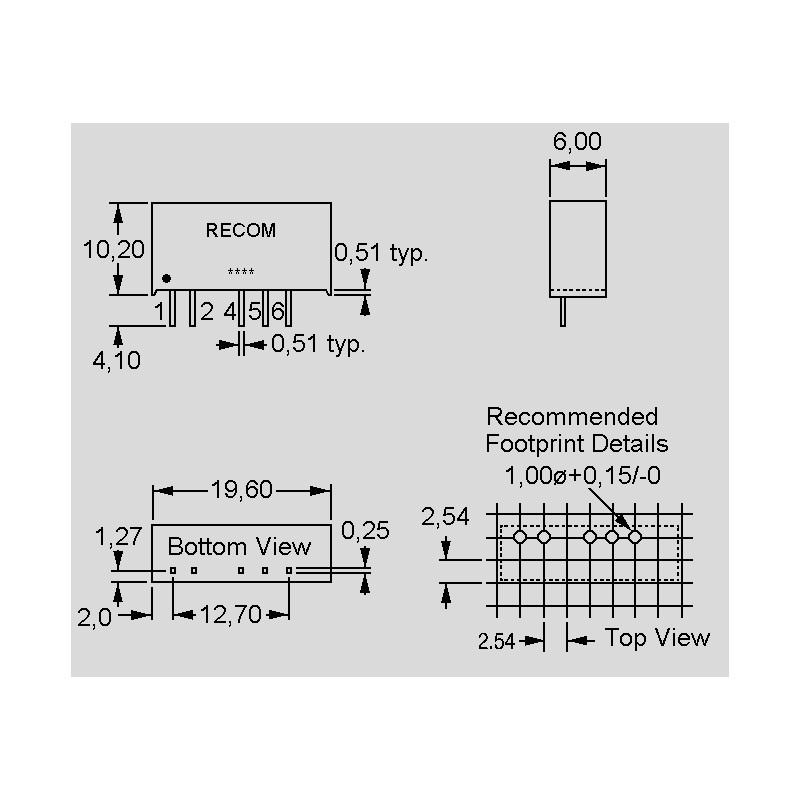

Case SIL 7 case
Input voltage [V] 12
Output voltage [V] 12
Output current [mA] 83
Efficiency [%] 80...84
Data Sheet

Unit price

6,39 €

Stock: 8
Next incoming goods:
CW 48/2024
25 units

Further delivery:
CW 12/2025
