RCDE-48-0.70

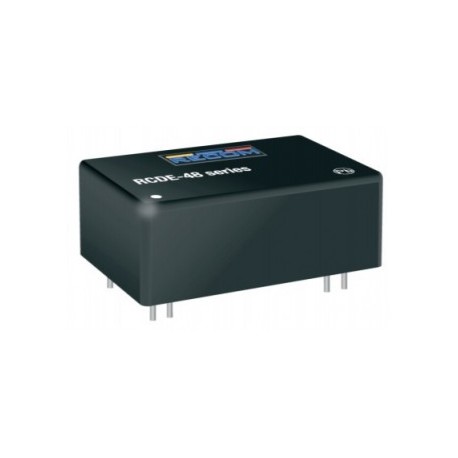

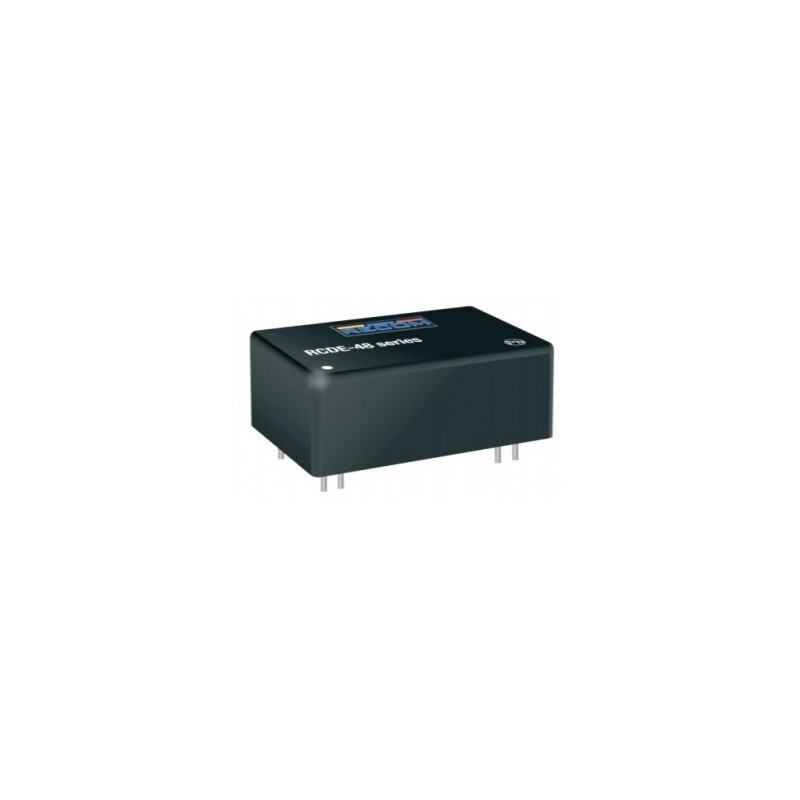

Recom DC/DC LED driver series RCDE-48

DC/DC step-down converters in a plastic housing with a constant current output, a wide input voltage range and a digital PWM as well as an analog voltage dimming. These devices are suitable for controlling LED lightning, are protected against overtemperature and comply with EN55015. We offer the following types of this Recom series: RCDE-48-0.35, RCDE-48-0.70, and RCDE-48-1.05.

  • operating temperature: -40 to +55°C
  • dimensions: 32,1x20,6x12,3mm
  • weight: 16g
RCDE-48-0.70, Recom DC/DC step-down LED drivers, dimmable, RCDE-48 series

RCDE-48-0.70

247236 RCDE-48-0.70 RCDE-48-0.70 Recom DC/DC LED driver series RCDE-48. DC/DC step-down converters in a plastic housing with a constant current output, a wide input voltage range and a digital PWM as well as an analog voltage dimming. These devices are suitable for controlling LED lightning, are protected against overtemperature and comply with EN55015. We offer the following types of this Recom series: RCDE-48-0.35, RCDE-48-0.70, and RCDE-48-1.05. operating temperature: -40 to +55°C dimensions: 32,1x20,6x12,3mm weight: 16g

Specifications

manufacturer
Manufacturer's name RCDE-48-0.70
Input voltage [V] 6...60
Output voltage [V] 3...52
Efficiency [%] 97
Output current [A] 0...0,70
Ripple [mVp-p] 300
Data Sheet

Unit price

7,59 €

Stock: 0
Further delivery:
CW 09/2025

Minimum order quantity 14 units or
multiples of 14.
