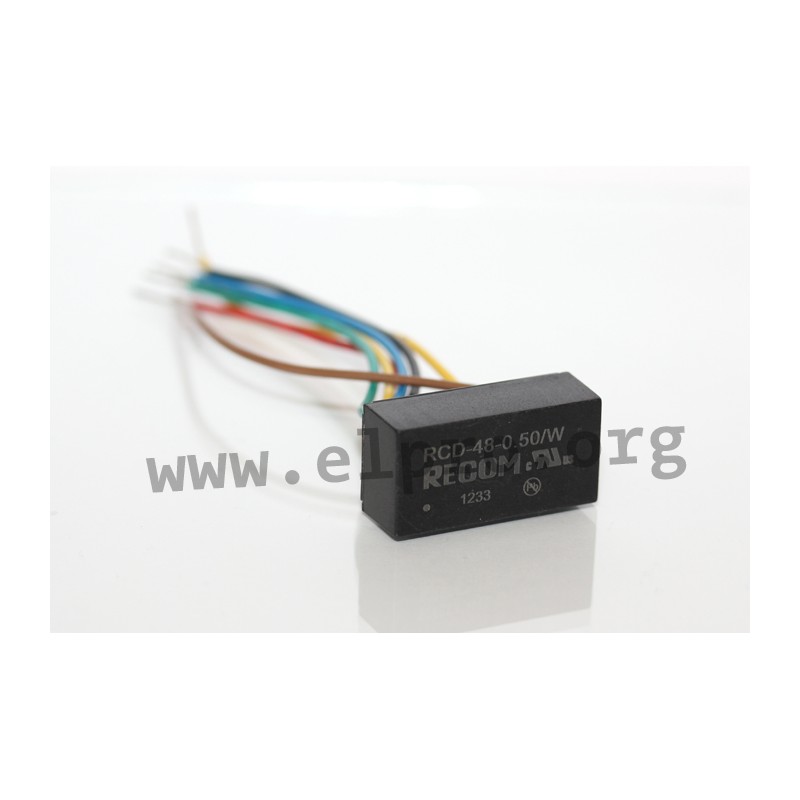

RCD-48-0.35/W

Recom DC/DC LED driver series RCD and RBD

DC/DC converters with constant current output. These devices have a wide input voltage range, up to 96% efficiency for the RDC series and up to 92% efficiency for the wired version of the RBD series. They feature digital PWM and analog voltage dimming, as well as short circuit and over temperature protections. The solder pin or wired options make them suitable for driving illumination LED applications.

Recom RCD-48_W series

RCD-48-0.35/W

37075 RCD-48-0.35/W RCD-48-0.35/W Recom DC/DC LED driver series RCD and RBD. DC/DC converters with constant current output. These devices have a wide input voltage range, up to 96% efficiency for the RDC series and up to 92% efficiency for the wired version of the RBD series. They feature digital PWM and analog voltage dimming, as well as short circuit and over temperature protections. The solder pin or wired options make them suitable for driving illumination LED applications.

Specifications

manufacturer
Manufacturer's name RCD-48-0.35/W
Input voltage [V] 9...60
Output voltage [V] 2...56
Output current range [mA] 0...350
Dimmable yes
Efficiency [%] 96
Ripple [mVp-p] 300
Data Sheet

Unit price

20,79 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 12 units or
multiples of 12.
