RCD-24-0.30/PL/A

Recom DC/DC LED driver series RCD-24/PL

DC/DC step-down converters (open frame) with a constant current output, a built-in class A (RCD-24_/PL/A) resp. class B (RCD-24_/PL/B) EMC filter and a wide input as well as output voltage range. These devices have a dimming control (digital PWM and analogue voltage dimming) and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and EN/RAILWAYS certified. We offer various types of this Recom series.

  • operating temperature 300/350mA: -40 to +85°C
  • operating temperature 500mA: -40 to +80°C
  • operating temperature 600/700mA: -40 to +75°C
  • operating temperature 1000mA: -40 to +65°C
  • dimensions: 31x11,4x6,6mm
  • weight: 1,9g

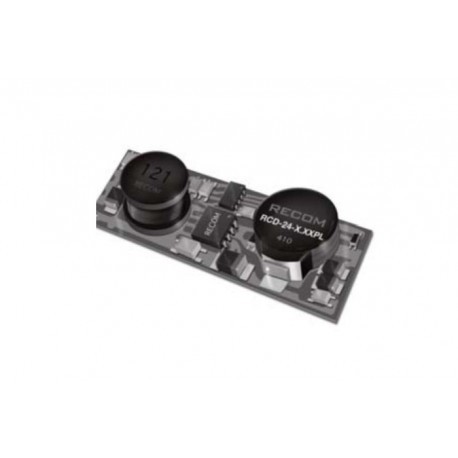

RCD-24-0.30/PL/A, Recom DC/DC LED drivers, SMD, dimmable, open frame, RCD-24/PL series

RCD-24-0.30/PL/A

247232 RCD-24-0.30/PL/A RCD-24-0.30/PL/A Recom DC/DC LED driver series RCD-24/PL. DC/DC step-down converters (open frame) with a constant current output, a built-in class A (RCD-24_/PL/A) resp. class B (RCD-24_/PL/B) EMC filter and a wide input as well as output voltage range. These devices have a dimming control (digital PWM and analogue voltage dimming) and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and EN/RAILWAYS certified. We offer various types of this Recom series. operating temperature 300/350mA: -40 to +85°C operating temperature 500mA: -40 to +80°C operating temperature 600/700mA: -40 to +75°C operating temperature 1000mA: -40 to +65°C dimensions: 31x11,4x6,6mm weight: 1,9g

Specifications

manufacturer
Manufacturer's name RCD-24-0.30/PL/A
Input voltage range [V] 4,5...36
Output current range [mA] 0...300
Efficiency [%] 96
Ripple [mVp-p] 300
Output voltage range [V] 2...35
Data Sheet

Unit price

13,89 €

Stock: 0
Further delivery:
CW 13/2025
