RBM-1205D

Recom DC/DC converter series RBM

DC/DC converters in a SIP/SIL6-micro housing with 1W output are available for direct PCB mounting. These devices come in two versions: RBM-_S, which has a single output, and RBM-_D, which provides dual outputs. They have been approved for medical applications and feature an industry standard pinout. With efficiency up to 85%, these converters offer unregulated voltage with ±5% accuracy and ripple & noise of maximum 100mVpp. The isolation is rated at 3kV DC while the operating temperature range is -40 to +85°C. We offer the following types of this Recom series: RBM-0505S, RBM-1205S, RBM-0505D, RBM-0512D, RBM-1205D and RBM-1212D.

  • single (RBM-_S) resp. dual output (RBM-_D)
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC (1s)
  • operating temperature: -40 to +85°C
  • weight: 1,3g
Recom RBM series

RBM-1205D

43623 RBM-1205D RBM-1205D Recom DC/DC converter series RBM. DC/DC converters in a SIP/SIL6-micro housing with 1W output are available for direct PCB mounting. These devices come in two versions: RBM-_S, which has a single output, and RBM-_D, which provides dual outputs. They have been approved for medical applications and feature an industry standard pinout. With efficiency up to 85%, these converters offer unregulated voltage with ±5% accuracy and ripple & noise of maximum 100mVpp. The isolation is rated at 3kV DC while the operating temperature range is -40 to +85°C. We offer the following types of this Recom series: RBM-0505S, RBM-1205S, RBM-0505D, RBM-0512D, RBM-1205D and RBM-1212D. single (RBM-_S) resp. dual output (RBM-_D) output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC (1s) operating temperature: -40 to +85°C weight: 1,3g

Specifications

manufacturer
Manufacturer's name RBM-1205D

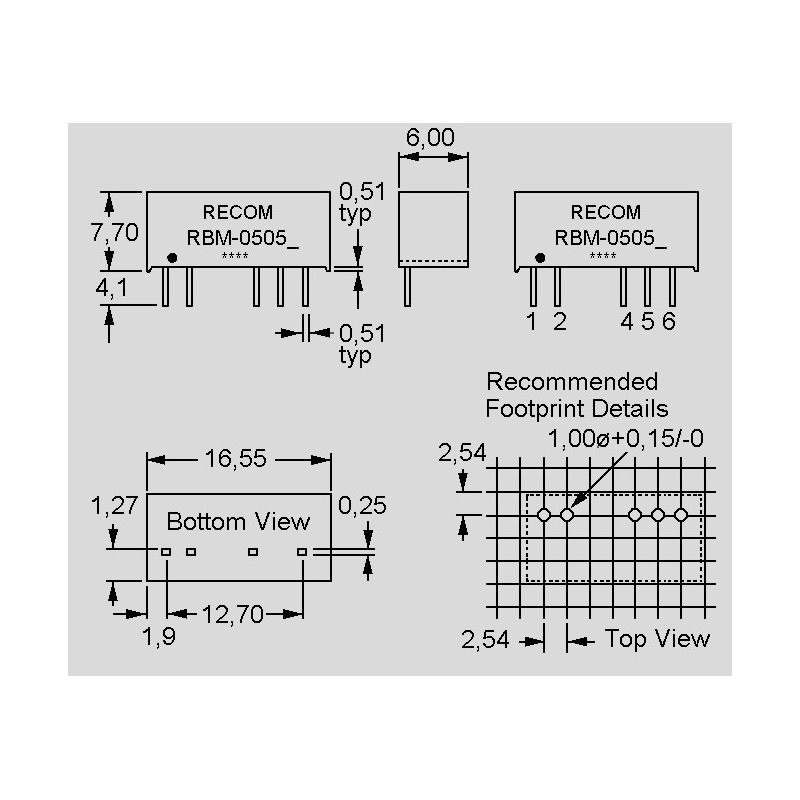

Case SIL 6 case
Input voltage [V] 12
Output voltage [V] 5
Output current range [mA] ±100
Efficiency [%] 74...78
Data Sheet

Unit price

7,89 €

Stock: 27
Further delivery:
CW 18/2025
