RBBA3000-50

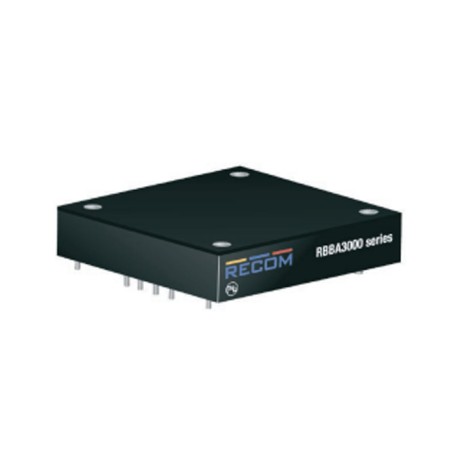

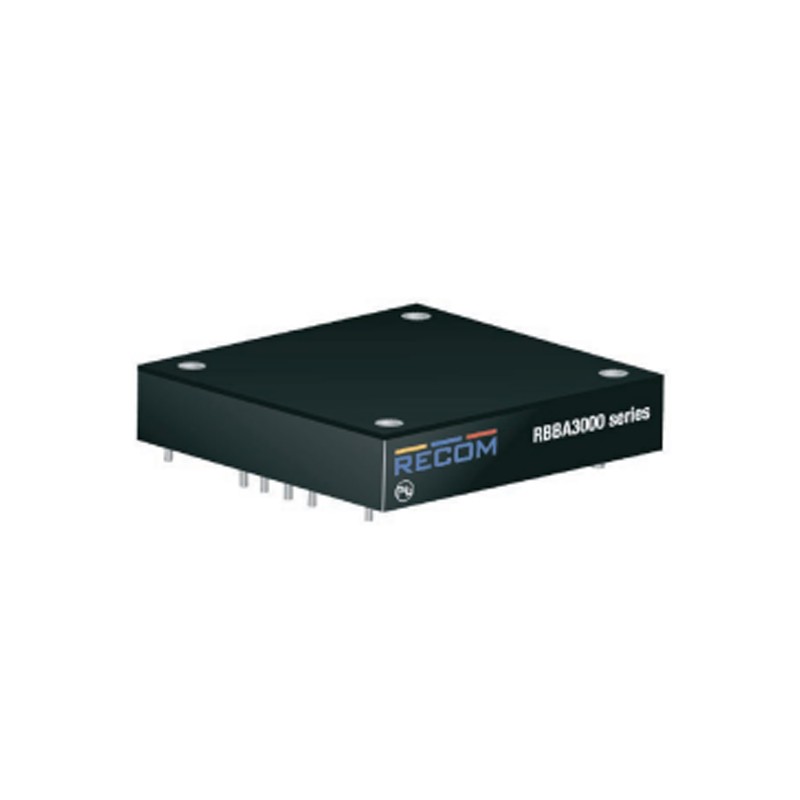

Recom DC/DC switching regulators series RBBA3000-50

Buck/boost converters in a half brick housing with 50A. These switching regulators are suitable for direct PCB mounting and have a programmable output voltage. They are protectet against overtemperature, overvoltage, as well as short ciruit. Furthermore, they comply with the EMV norms EN55032 class A and B. We offer the RBBA3000-50 type of this Recom series.

  • single output
  • output current: 50A
  • input voltage: 9 to 60V
  • output voltage tolerance: 0,5%
  • ripple quality: 100mVpp
  • operating temperature: -40 to +85°C
  • dimensions: 60,60x63,2x13mm
  • weight: 155g
RBBA3000-50, Recom DC/DC switching regulators, 50A, half brick housing, RBBA3000-50 series

RBBA3000-50

247186 RBBA3000-50 RBBA3000-50 Recom DC/DC switching regulators series RBBA3000-50. Buck/boost converters in a half brick housing with 50A. These switching regulators are suitable for direct PCB mounting and have a programmable output voltage. They are protectet against overtemperature, overvoltage, as well as short ciruit. Furthermore, they comply with the EMV norms EN55032 class A and B. We offer the RBBA3000-50 type of this Recom series. single output output current: 50A input voltage: 9 to 60V output voltage tolerance: 0,5% ripple quality: 100mVpp operating temperature: -40 to +85°C dimensions: 60,60x63,2x13mm weight: 155g

Specifications

manufacturer
Manufacturer's name RBBA3000-50
Output voltage [V] 0...60
Input voltage range [V] 9...60
Output current range [mA] 50000
Efficiency [%] 96
Data Sheet

Unit price

316,79 €

Stock: 0
Further delivery:
CW 16/2025
