RB-0515D

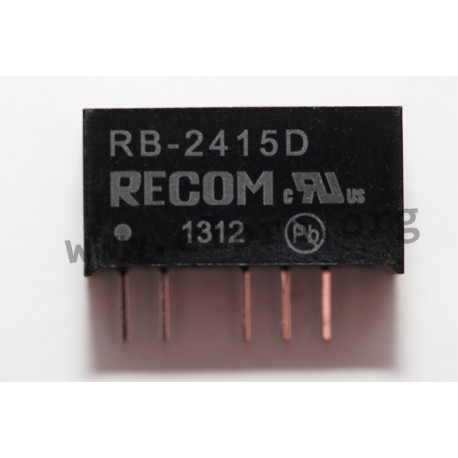

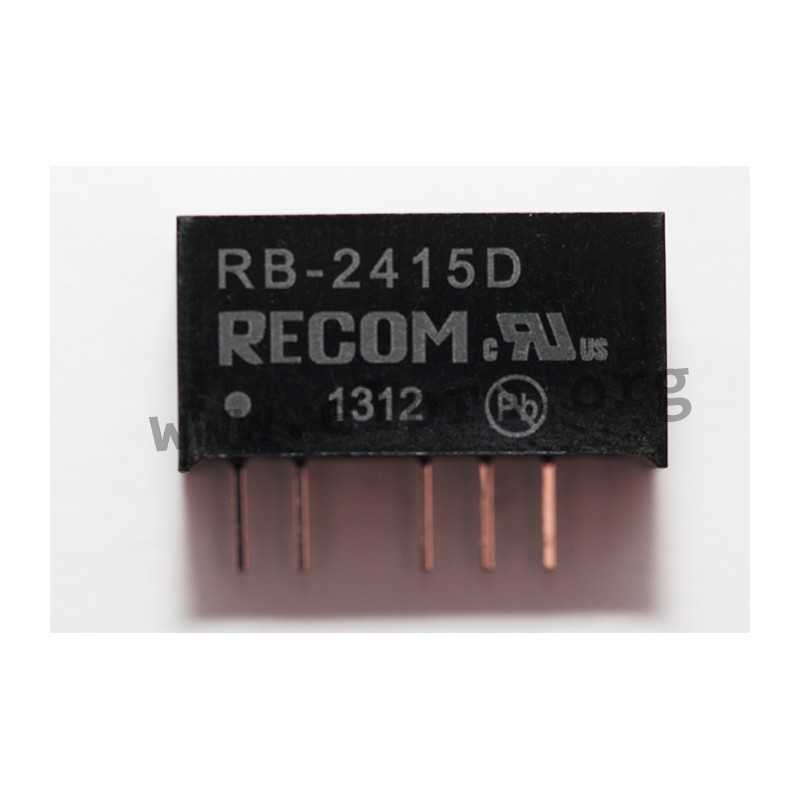

Recom DC/DC converter series RB

DC/DC converters in a SIL7 housing with up to 1W are ideal for direct PCB mounting. These devices comply with EN60950-1 and feature continuous short circuit protection (RB_/P) as well as a withstand voltage of 1kV. They have been designed to meet the highest safety standards, ensuring reliable performance even under challenging conditions. The compact size of these converter modules makes them easy to integrate into any system or application, while their robust construction ensures long-lasting durability and consistent operation over time. We offer various types of this Recom series.

  • single (RB-_S) resp. dual output (RB-_D)
  • output: 1W
  • output voltage tolerance: ±5%
  • operating temperature: -40 to +85°C
  • weight: 2,2g
Recom RB series

RB-0515D

37152 RB-0515D RB-0515D Recom DC/DC converter series RB . DC/DC converters in a SIL7 housing with up to 1W are ideal for direct PCB mounting. These devices comply with EN60950-1 and feature continuous short circuit protection (RB_/P) as well as a withstand voltage of 1kV. They have been designed to meet the highest safety standards, ensuring reliable performance even under challenging conditions. The compact size of these converter modules makes them easy to integrate into any system or application, while their robust construction ensures long-lasting durability and consistent operation over time. We offer various types of this Recom series. single (RB-_S) resp. dual output (RB-_D) output: 1W output voltage tolerance: ±5% operating temperature: -40 to +85°C weight: 2,2g

Specifications

manufacturer
Manufacturer's name RB-0515D
Case SIL 7 case
Input voltage [V] 5
Output voltage [V] ±15
Output current range [mA] ±33
Efficiency [%] 80...84
Data Sheet

Unit price

6,59 €

Stock: 81
Further delivery:
CW 10/2025
