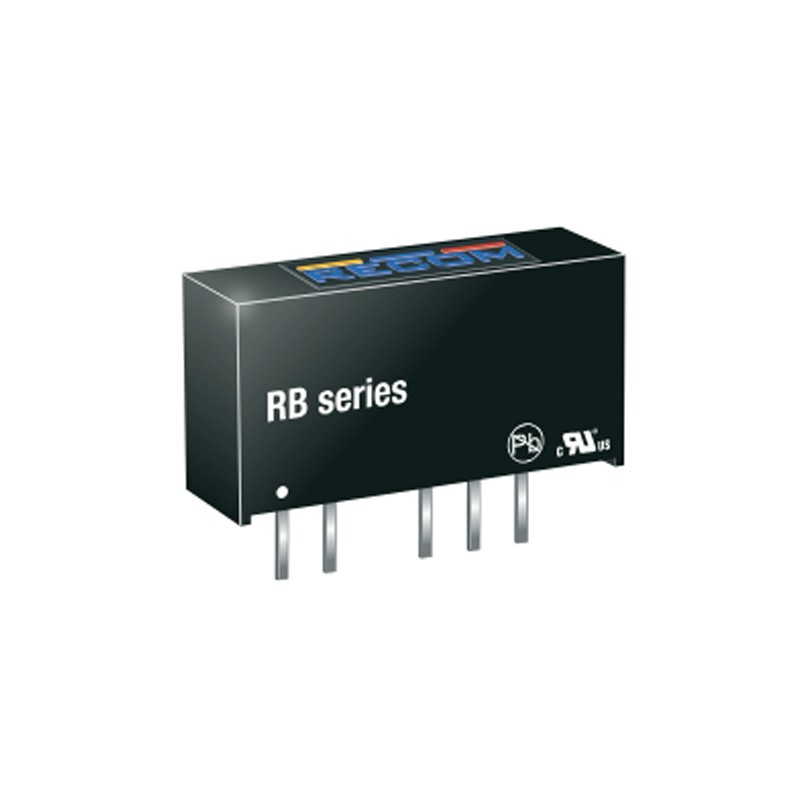

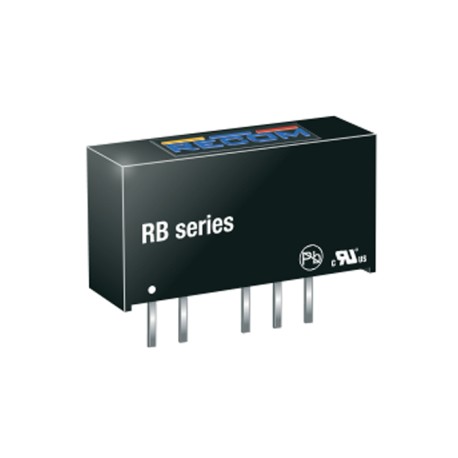

RB-2424D

Recom DC/DC converters series RB

DC/DC converters in a SIP7 housing, with 1W, and suitable for application in medical technology. These devices conform with UL 60950-1, EN 60950-1, EN 60601-1, EN 55032 class A, and EN 55032 class B. They are available in a type that is protected against short circuit (RB-_/P) and they can be installed directly on the PCB. We offer the following types of this Recom series: RB-0515D/P and RB-2424D.

  • dual output
  • power: 1W
  • output voltage tolerance: ±5%
  • maximal ripple quality: ±75mVp-p
  • isolation voltage (I/P-O/P): 1000V DC
  • operating temperature: -40 to +85°C
  • dimensions: 19,6x6,0x10,2mm
  • weight: 2,2g
RB-2424D, Recom DC/DC converters, 1W, SIP7 housing, for medical technology, RB series

RB-2424D

247011 RB-2424D RB-2424D Recom DC/DC converters series RB. DC/DC converters in a SIP7 housing, with 1W, and suitable for application in medical technology. These devices conform with UL 60950-1, EN 60950-1, EN 60601-1, EN 55032 class A, and EN 55032 class B. They are available in a type that is protected against short circuit (RB-_/P) and they can be installed directly on the PCB. We offer the following types of this Recom series: RB-0515D/P and RB-2424D. dual output power: 1W output voltage tolerance: ±5% maximal ripple quality: ±75mVp-p isolation voltage (I/P-O/P): 1000V DC operating temperature: -40 to +85°C dimensions: 19,6x6,0x10,2mm weight: 2,2g

Specifications

manufacturer
Manufacturer's name RB-2424D
Output voltage [V] 12
Input voltage range [V] 12
Efficiency [%] 78...80
Output current [A] 84
Data Sheet

Unit price

6,79 €

Stock: 0
Further delivery:
CW 28/2025

Minimum order quantity 25 units or
multiples of 25.
