RACV20-12-LP

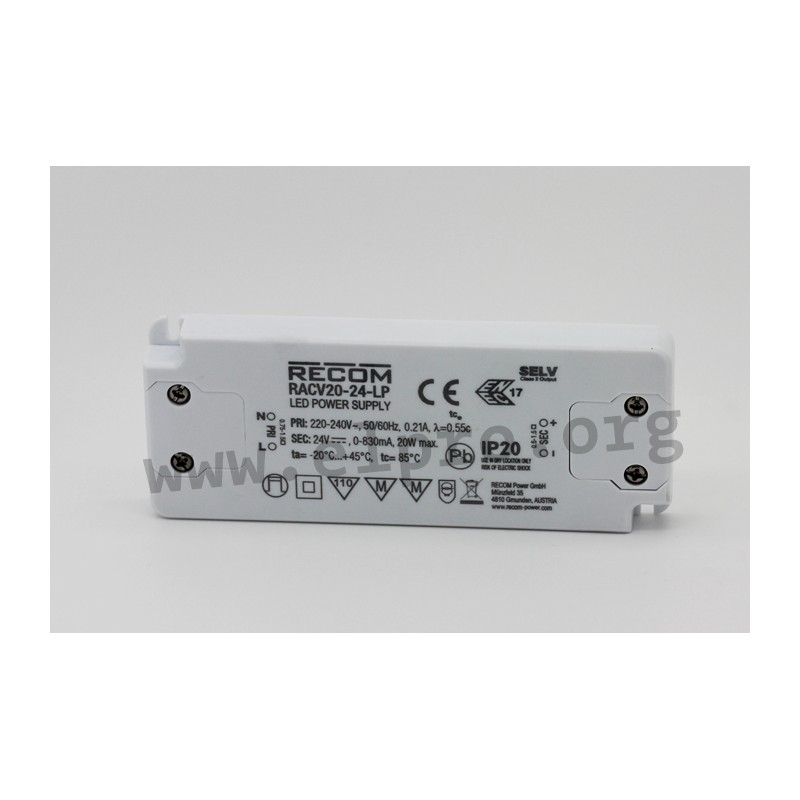

Recom LED driver series RACV20-LP

LED drivers in a plastic housing (IP20) with 20W, a constant voltage, a universal input and a low profile (13mm). These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACV20-12-LP and RACV20-24-LP.

  • single output
  • output: 20W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 8A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +45°C
  • dimensions: 128x50x13mm
  • weight: 75g

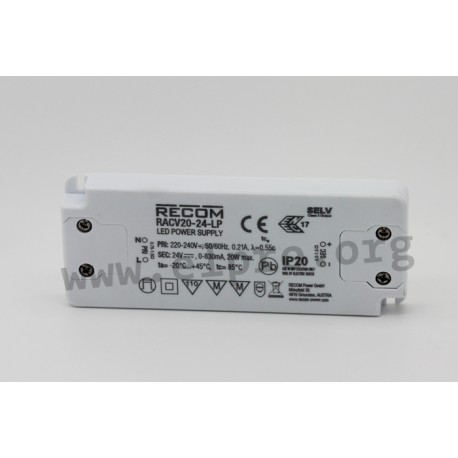

Sharp RACV20-LP series

RACV20-12-LP

109104 RACV20-12-LP RACV20-12-LP Recom LED driver series RACV20-LP. LED drivers in a plastic housing (IP20) with 20W, a constant voltage, a universal input and a low profile (13mm). These devices are suitable for LED&nbsp;lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the&nbsp;following types of this Recom series:&nbsp;RACV20-12-LP and RACV20-24-LP. single output output: 20W input voltage:&nbsp;198 to 264V AC (47 to 63Hz) maximal input inrush current: 8A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +45&deg;C dimensions: 128x50x13mm weight: 75g

Specifications

manufacturer
Manufacturer's name RACV20-12-LP
Output voltage [V] 12
Output current range [mA] 0...1670
Efficiency [%] 82
Output power [W] 20
Ripple [mVp-p] 0,7
Data Sheet

Unit price

15,39 €

Stock: 0
Next incoming goods:
CW 49/2024
35 units

Further delivery:
CW 13/2025
