RACV12-12-LP

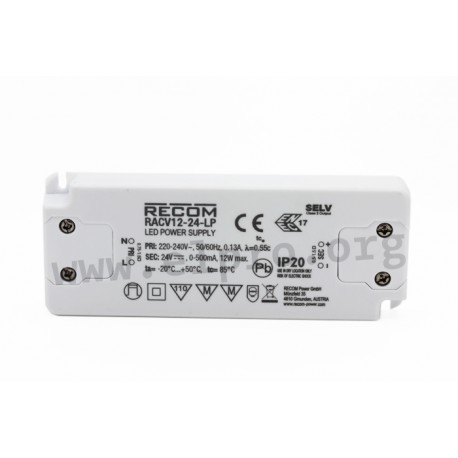

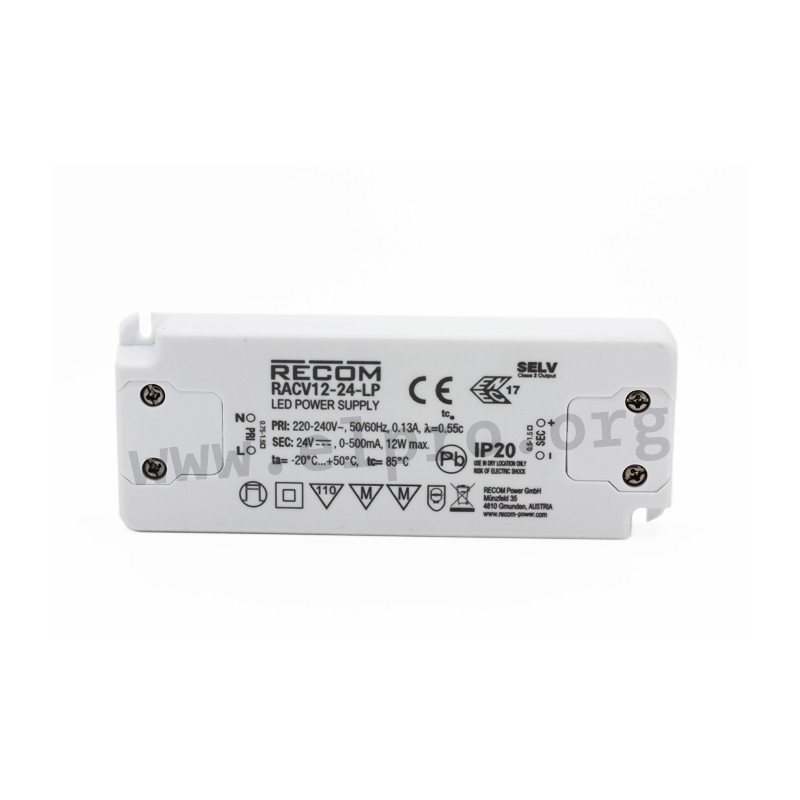

Recom LED driver series RACV12-LP

LED drivers in a plastic housing (IP20) with 12W, a constant voltage, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACV12-12-LP and RACV12-24-LP.

  • single output
  • output: 12W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 8A
  • no-load power: <0,4W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 128x50x13mm
  • weight: 70g
Mean Well RACV12-_-LP series

RACV12-12-LP

109510 RACV12-12-LP RACV12-12-LP Recom LED driver series RACV12-LP. LED drivers in a plastic housing (IP20) with 12W, a constant&nbsp;voltage, a low profile (13mm) and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short&nbsp;circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series:&nbsp;RACV12-12-LP and RACV12-24-LP. single output output: 12W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 8A no-load power: &lt;0,4W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50&deg;C dimensions: 128x50x13mm weight: 70g

Specifications

manufacturer
Manufacturer's name RACV12-12-LP
Output voltage [V] 12
Output current range [mA] 0...1000
Efficiency [%] 78
Output power [W] 12
Ripple [mVp-p] 600
