RACV04-24

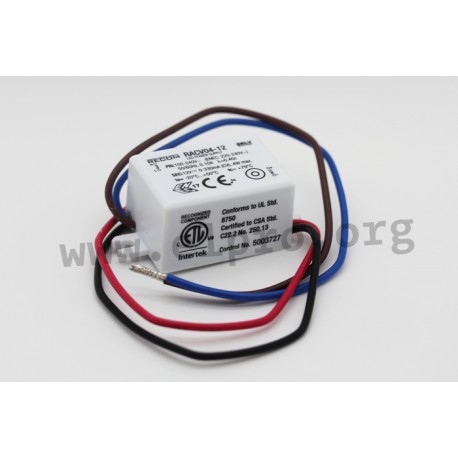

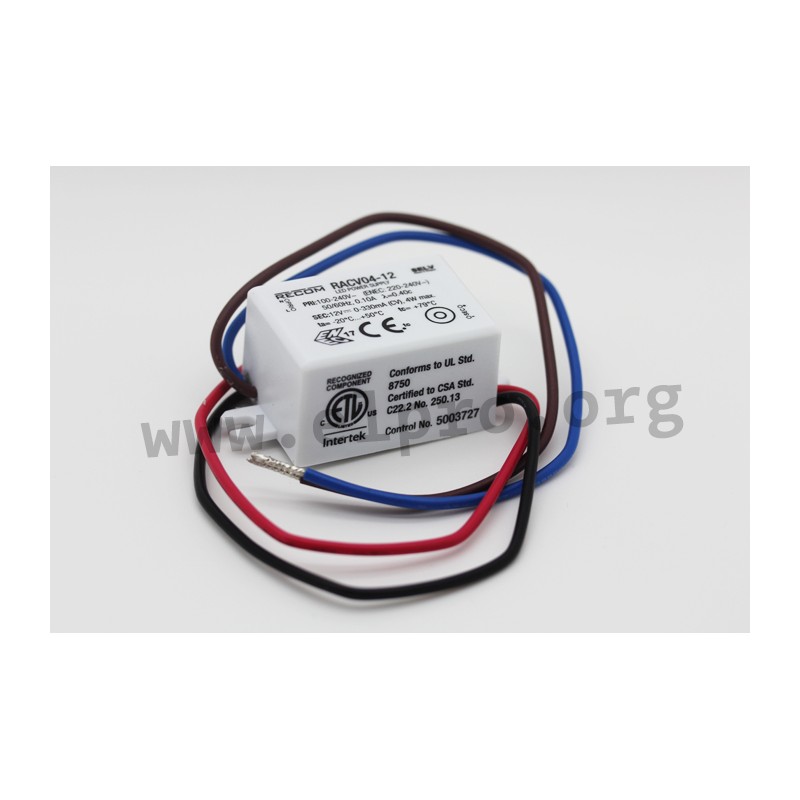

Recom LED driver series RACV04

LED drivers in a plastic housing (IP65) with 4W, a constant voltage and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with UL8750, EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACV04-12 and RACV04-24.

  • single output
  • output: 4W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 11A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 38x27x21mm
  • weight: 40g
LED-switching power supplies series RACV04

RACV04-24

109092 RACV04-24 RACV04-24 Recom LED driver series RACV04. LED drivers in a plastic housing (IP65) with 4W, a constant voltage and a universal input. These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with&nbsp;UL8750, EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series:&nbsp;RACV04-12 and RACV04-24. single output output: 4W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 11A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50&deg;C dimensions: 38x27x21mm weight: 40g

Specifications

manufacturer
Manufacturer's name RACV04-24
Output voltage [V] 24
Output current range [mA] 0...700
Efficiency [%] 75
Output power [W] 4
Ripple [mVp-p] 240
Data Sheet

Unit price

7,89 €

Stock: 691
Further delivery:
CW 05/2025
