RACT18-500

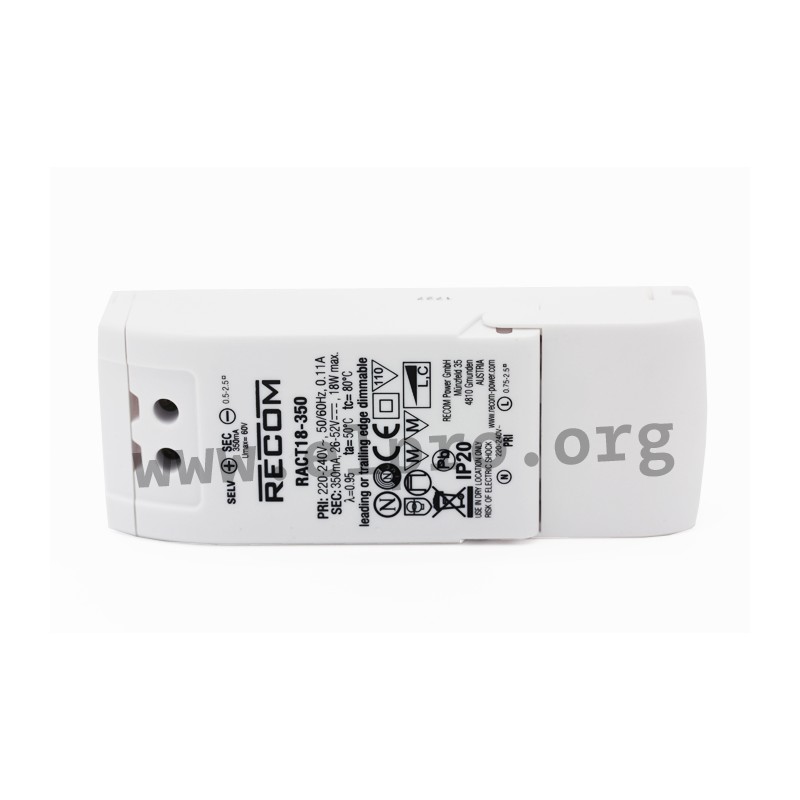

Recom LED driver series RACT18

LED drivers in a plastic housing (IP20) with 18W, a constant current, protection class II and a universal input. These devices have a TRIAC dimmer (phase-cut dimmers) and are protected against overload, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT18-350, RACT18-500, RACT18-700, RACT18-1050 and RACT18-1400.

  • single output
  • output: 18W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 5A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 120x45x28mm
  • weight: 100g
Recom RACT18_ series

RACT18-500

110598 RACT18-500 RACT18-500 Recom LED driver series RACT18. LED drivers in a plastic housing (IP20) with 18W, a constant current, protection class II and a universal input. These devices have a TRIAC dimmer (phase-cut dimmers) and are protected against overload, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT18-350, RACT18-500, RACT18-700, RACT18-1050 and RACT18-1400. single output output: 18W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 5A withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50°C dimensions: 120x45x28mm weight: 100g

Specifications

manufacturer
Manufacturer's name RACT18-500
Output voltage [V] 18...36
Ripple & noise [mA] 200
Output current tolerance [%] 5
Efficiency [%] 84
Output power [W] 18
Output current [mA] 500
Data Sheet

Unit price

16,19 €

Stock: 3
Further delivery:
CW 18/2025
