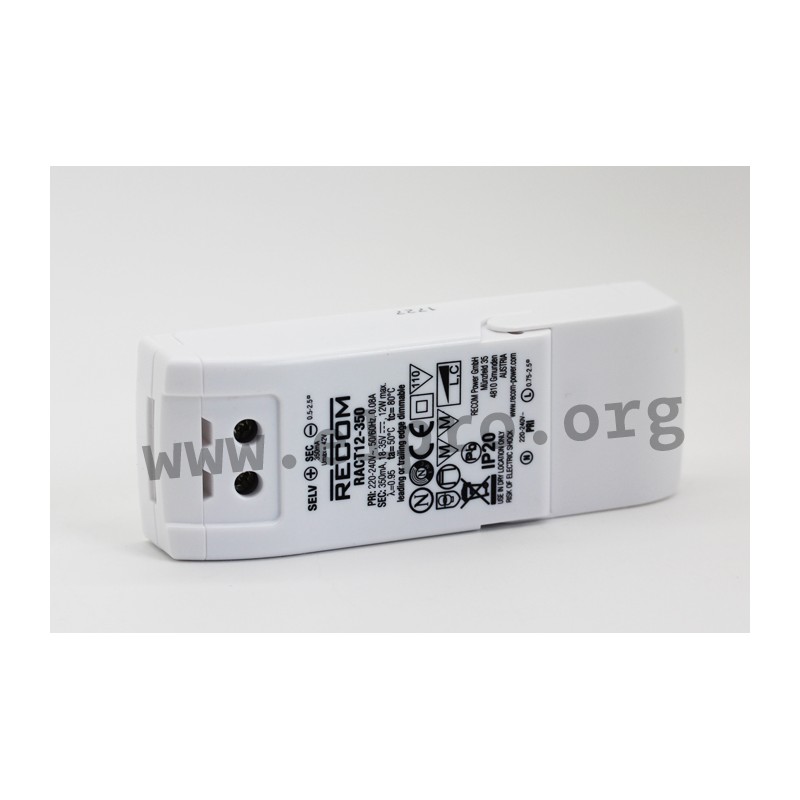

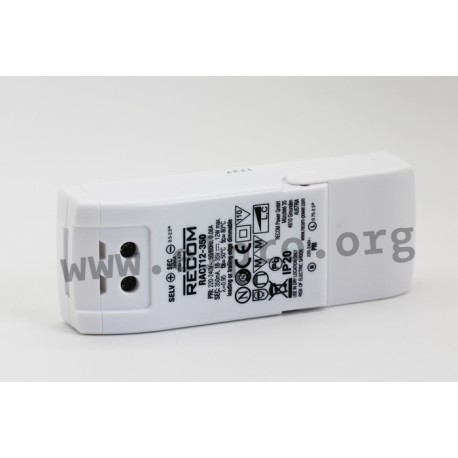

RACT12-700

Recom LED driver series RACT12

LED drivers in a plastic housing (IP20) with 12W, a constant current, a TRIAC dimmer (phase-cut dimmer), protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload, overvoltage as well as short circuit. They have screw terminals and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT12-350, RACT12-500 and RACT12-700.

  • single output
  • output: 12W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 5A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 109x40x22mm
  • weight: 70g
RACT12-700, Recom LED switching power supplies, 12W, IP20, AC dimmable, RACT12 series

RACT12-700

110596 RACT12-700 RACT12-700 Recom LED driver series RACT12. LED drivers in a plastic housing (IP20) with 12W, a constant current, a TRIAC dimmer (phase-cut dimmer), protection class II and a universal input. These devices are suitable for LED lighting applications and are protected against overload, overvoltage as well as short circuit. They have screw terminals and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT12-350, RACT12-500 and RACT12-700. single output output: 12W input voltage: 198 to 264V AC (47 to 63Hz) maximal input inrush current: 5A withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +50°C dimensions: 109x40x22mm weight: 70g

Specifications

manufacturer
Manufacturer's name RACT12-700
Output voltage [V] 9...18
Ripple & noise [mA] 200
Output current tolerance [%] 5
Efficiency [%] 81
Output power [W] 12
Output current [mA] 700
Data Sheet

Unit price

13,19 €

Stock: 99
Further delivery:
CW 13/2025
