RACM90-24SK/ENC

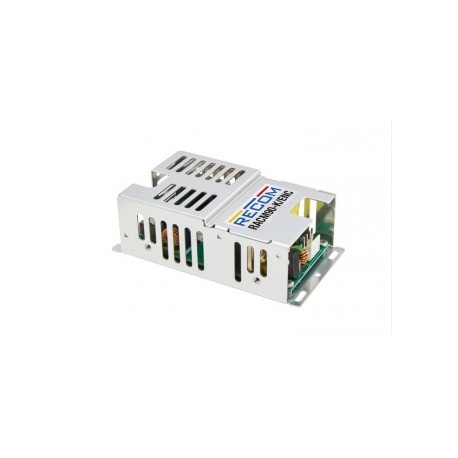

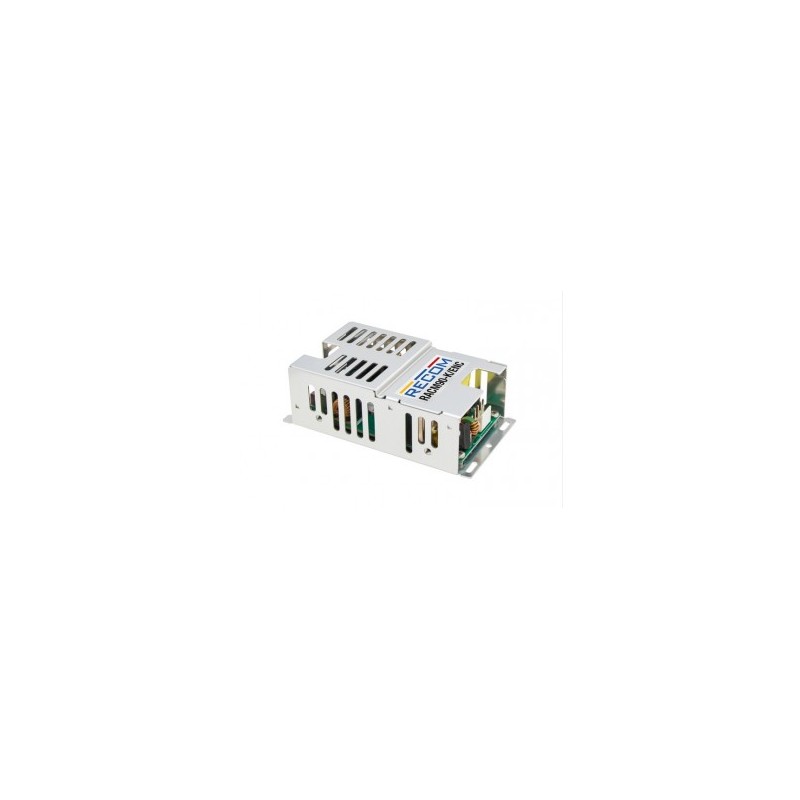

Recom AC/DC converter series RACM90-K

Switching power supplies in an enclosed housing with 90W, an LPS certification and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a built-in EMC filter and comply with EN55032 class B as well as EN55035. We offer various types of this Recom series.

  • single output
  • output: 90W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • overload protection: 130 to 150%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +90°C
  • dimensions: 118,3x62,7x38,7mm
  • weight: 265g

Open frame types

RACM90-24SK/ENC, Recom AC/DC converters, 90W, for medical technology, RACM90-K series

RACM90-24SK/ENC

242060 RACM90-24SK/ENC RACM90-24SK/ENC Recom AC/DC converter series RACM90-K. Switching power supplies in an enclosed housing with 90W, an LPS certification and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have a built-in EMC filter and comply with EN55032 class B as well as EN55035. We offer various types of this Recom series. single output output: 90W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A overload protection: 130 to 150% withstand voltage: 4000V AC operating temperature: -40 to +90°C dimensions: 118,3x62,7x38,7mm weight: 265g Open frame types

Specifications

manufacturer
Manufacturer's name RACM90-24SK/ENC
Output voltage [V] 24
Efficiency [%] 89
Output current [A] 3,75
Output voltage tolerance: [%] ±2
Output power [W] 90
Ripple [mVp-p] 240
Data Sheet

Unit price

36,49 €

Stock: 12
Further delivery:
CW 09/2025
