RACM90-15SK/OF

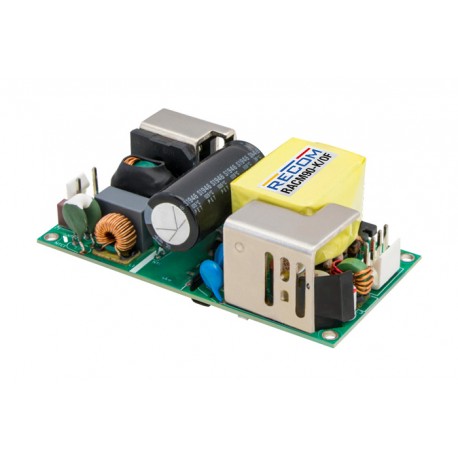

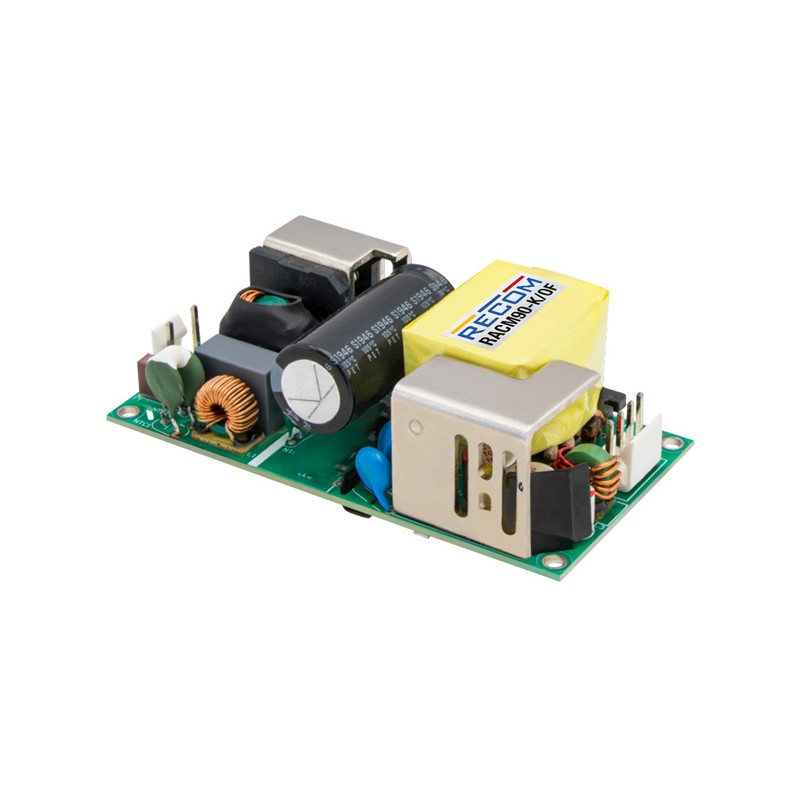

Recom AC/DC converter series RACM90-K

Open-frame type switching power supplies with 90W, a universal input and an LPS certification. These devices are suitable for medical technology applications (2xMOPP) and comply with EN55032 class B as well as EN55035. They have a built-in EMC filter and are protected against overvoltage, short circuit as well as overload. We offer the following types of this Recom series: RACM90-12SK/OF, RACM90-15SK/OF, RACM90-24SK/OF, RACM90-36SK/OF and RACM90-48SK/OF.

  • single output
  • output: 90W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • overload protection: 130 to 150%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +90°C
  • dimensions: 101,6x50,8x32mm
  • weight: 180g

Metal housing types

RACM90-15SK/OF, Recom AC/DC converters, 90W, for medical technology, RACM90-K series

RACM90-15SK/OF

242059 RACM90-15SK/OF RACM90-15SK/OF Recom AC/DC converter series RACM90-K. Open-frame type switching power supplies with 90W, a universal input and an LPS certification. These devices are suitable for medical technology applications (2xMOPP) and comply with EN55032 class B as well as EN55035. They have a built-in EMC filter and are protected against overvoltage, short circuit as well as overload. We offer the following types of this Recom series: RACM90-12SK/OF, RACM90-15SK/OF, RACM90-24SK/OF, RACM90-36SK/OF and RACM90-48SK/OF. single output output: 90W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A overload protection: 130 to 150% withstand voltage: 4000V AC operating temperature: -40 to +90°C dimensions: 101,6x50,8x32mm weight: 180g Metal housing types

Specifications

manufacturer
Manufacturer's name RACM90-15SK/OF
Output voltage [V] 15
Efficiency [%] 89
Output current [A] 6
Output voltage tolerance: [%] ±2
Output power [W] 90
Ripple [mVp-p] 150
Data Sheet

Unit price

33,79 €

Stock: 9
Further delivery:
CW 14/2025
