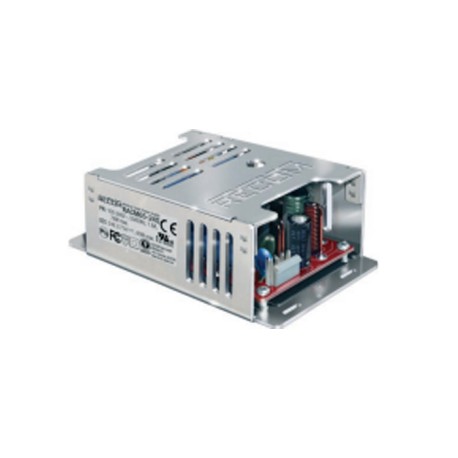

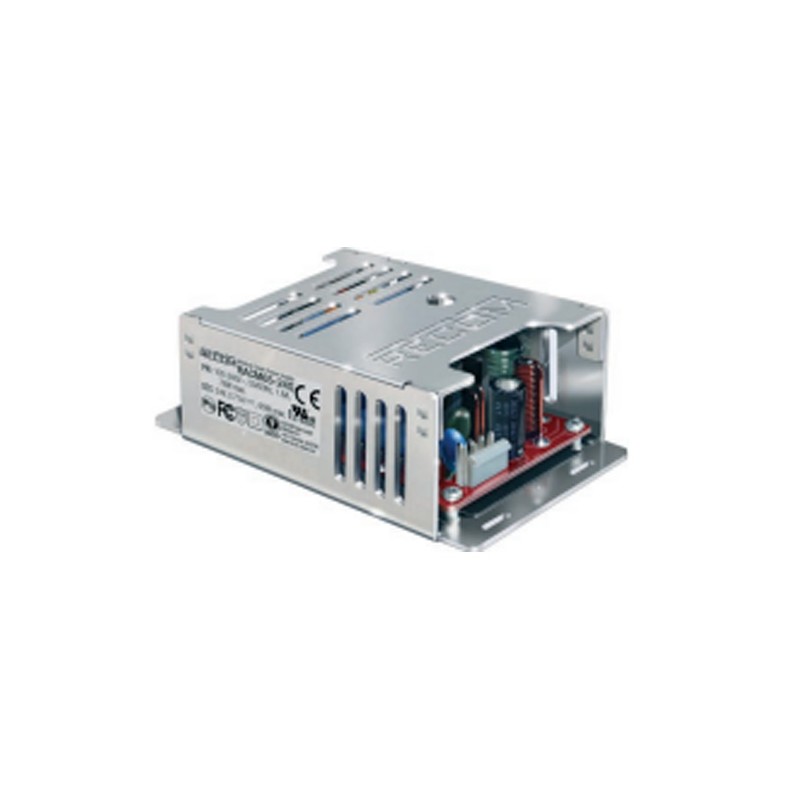

RACM65-12S

Recom converters series RACM65

These power supplies in a metal case (enclosed) are endued with crimp terminals, contact pin for nylon-crimp terminals, universal input and single output. They have a low off-load power, as well as they are protected against overload, over voltage and short circuit. Furthermore, these devices can be used in medical settings (2x MOPP / 250V AC). We offer the following types of this Recom series: RACM65-12S and RACM65-24S.

  • current: 65 Watt
  • input voltage range: 85 to 264V AC, 100 to 370V DC
  • inrush current, max.:  60A
  • leakage current, max.: <75µA
  • output voltage adjustment: ±10%
  • overload protection: 145%
  • isolation voltage I/P-O/P: 4000V AC
  • isolation voltage I/P-FG: 2500V AC
  • isolation voltage O/P-FG: 2500V AC
  • operating temperature: -40 to +85°C
  • operating height, max.: 5000m
  • weight: 172g
RACM65-12S, Recom AC/DC converters, 65W, metal case, medical, RACM65 series

RACM65-12S

247216 RACM65-12S RACM65-12S Recom converters series RACM65. These power supplies in a metal case (enclosed) are endued with crimp terminals, contact pin for nylon-crimp terminals, universal input and single output. They have a low off-load power, as well as they are protected against overload, over voltage and short circuit. Furthermore, these devices can be used in medical settings (2x MOPP / 250V AC). We offer the following types of this Recom series: RACM65-12S and RACM65-24S. current: 65 Watt input voltage range: 85 to 264V AC, 100 to 370V DC inrush current, max.:  60A leakage current, max.: &lt;75µA output voltage adjustment: ±10% overload protection: 145% isolation voltage I/P-O/P: 4000V AC isolation voltage I/P-FG: 2500V AC isolation voltage O/P-FG: 2500V AC operating temperature: -40 to +85°C operating height, max.: 5000m weight: 172g

Specifications

manufacturer
Manufacturer's name RACM65-12S
Output voltage [V] 12
Efficiency [%] 92,5
Output current [A] 0...5,42
Output voltage tolerance: [%] ±1
Output power [W] 65
Ripple [mVp-p] 75
Data Sheet

Unit price

103,09 €

Stock: 0
Further delivery:
CW 11/2025
