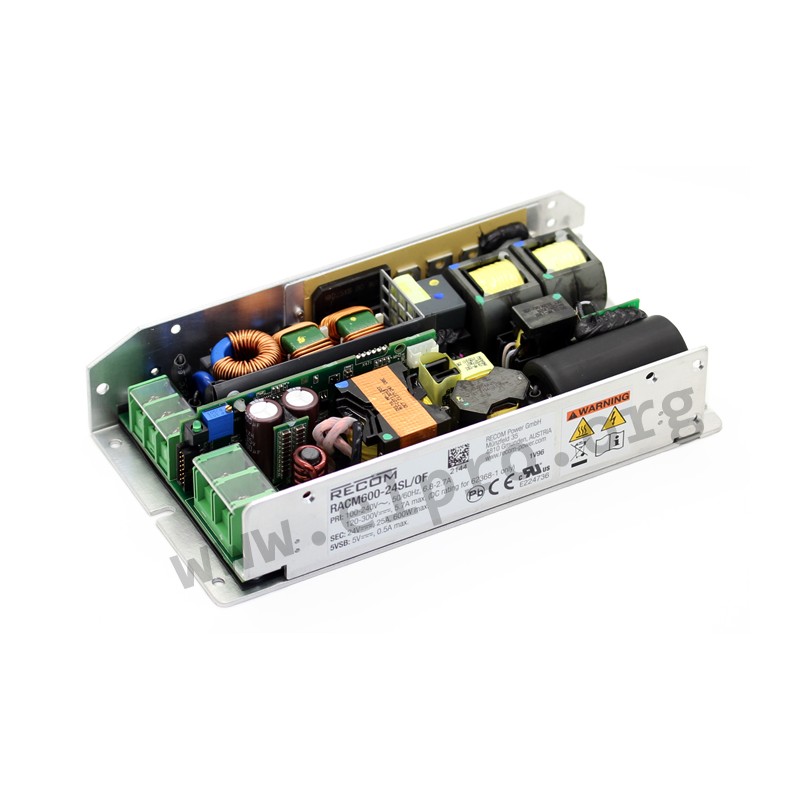

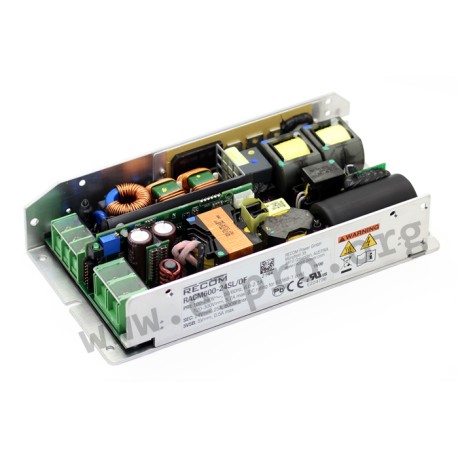

RACM600-48SL/OF

Recom AC/DC converter series RACM600-L

Open frame type AC/DC converters (PCB) with 600W, a universal input, an AUX power supply, a DC OK signal, a compact size (7,7"x4"), an adjustable output voltage and a PMBus interface. These devices are suitable for medical technology applications (2xMOPP) and are protected against overvoltage, overcurrent, overtemperature as well as short circuit. They have a redundant function (active current sharing) and comply with EN62368-1, EN60601-1 as well as EN55032 class B (without additional components). We offer the following types of this Recom series: RACM600-12SL/OF, RACM600-24SL/OF and RACM600-48SL/OF.

  • single output
  • output: 450W resp. 600W with forced air
  • input voltage: 80 to 275V AC (47 to 63Hz)
  • maximal output voltage tolerance: ±2,25%
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • dimensions: 196,8x101,6x40,6mm
  • weight: 1000g
RACM600-48SL/OF, Recom AC/DC converters, 600W, for medical technology, RACM600-L series

RACM600-48SL/OF

243326 RACM600-48SL/OF RACM600-48SL/OF Recom AC/DC converter series RACM600-L. Open frame type AC/DC converters (PCB) with 600W, a universal input, an AUX power supply, a DC OK signal, a compact size (7,7"x4"), an adjustable output voltage and a PMBus interface. These devices are suitable for medical technology applications (2xMOPP) and are protected against overvoltage, overcurrent, overtemperature as well as short circuit. They have a redundant function (active current sharing) and comply with EN62368-1, EN60601-1 as well as EN55032 class B (without additional components). We offer the following types of this Recom series: RACM600-12SL/OF, RACM600-24SL/OF and RACM600-48SL/OF. single output output: 450W resp. 600W with forced air input voltage: 80 to 275V AC (47 to 63Hz) maximal output voltage tolerance: ±2,25% maximal input inrush current: 20A withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 1500V AC operating temperature: -20 to +70°C dimensions: 196,8x101,6x40,6mm weight: 1000g

Specifications

manufacturer
Manufacturer's name RACM600-48SL/OF
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 12,5
Output voltage tolerance: [%] 2,25
Output power [W] 600
Data Sheet

Unit price

210,99 €

Stock: 13
Further delivery:
CW 30/2025
