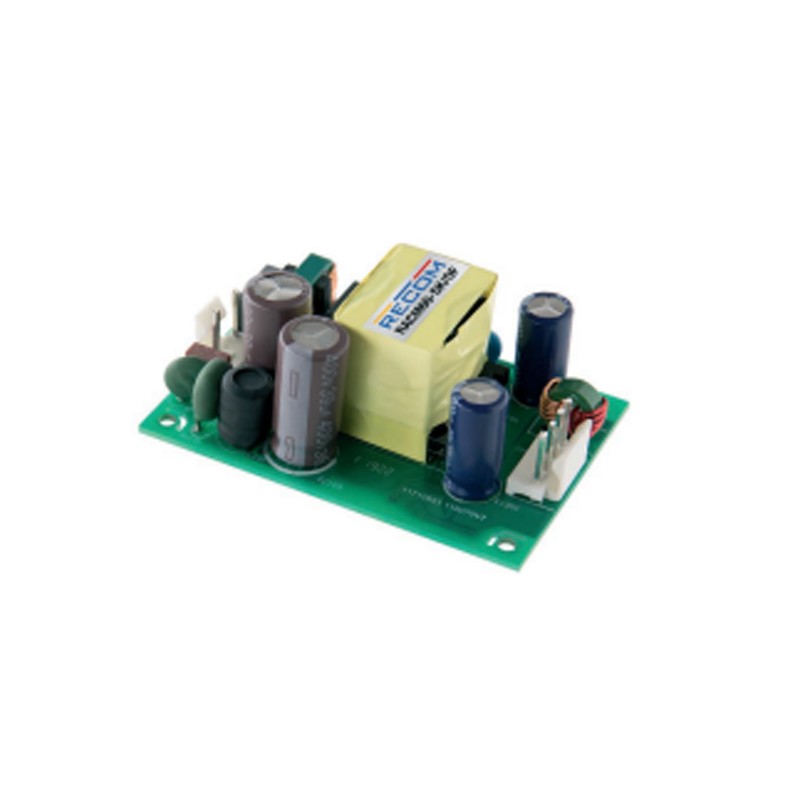

RACM60-12SK/OF/PCB-T

Recom AC/DC converters series RACM60-K/OF/PCB-T

These converter modules in a compact, open frame (2"x3") are suitable for direct PCB mounting. They have a universal input, a integrated EMV filter, and can be used in medical settings (2x MOPP / 250V AC). These devices are protected agains overload (hiccup mode), overvoltage, and short circuit, as well as they conform with the EMV norms EN60601-1-2 class B, EN61000-4-2, and EN55032 Klasse B. We offer the following types of this recom series: RACM60-12SK/OF/PCB-T and RACM60-24SK/OF/PCB-T.

  • single output
  • current: 60W
  • input voltage range: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • inrush current, max.: 60A
  • off-load power, typ.: 0,1W
  • overload protection: 105 to 120%
  • isolation voltage (I/P-O/P): 4000V AC
  • operating temperature: -40 to +85°C
  • operating height, max.: 4000m
  • dimensions: 78,4x53,0x35,4mm
  • weight, typ.: 111g

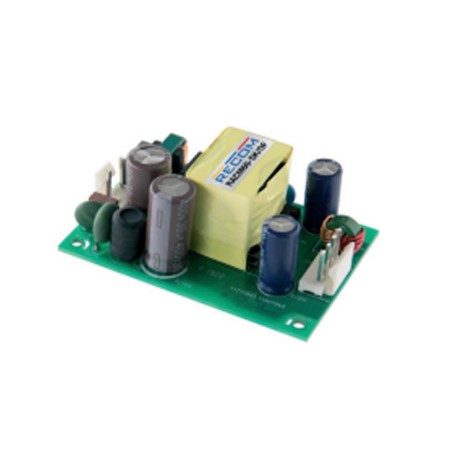

RACM60-12SK/OF/PCB-T, Recom AC/DC converters, 60W, open frame (2"x3"), medical, RACM60-K/OF/PCB-T series

RACM60-12SK/OF/PCB-T

247214 RACM60-12SK/OF/PCB-T RACM60-12SK/OF/PCB-T Recom AC/DC converters series RACM60-K/OF/PCB-T. These converter modules in a compact, open frame (2"x3") are suitable for direct PCB mounting. They have a universal input, a integrated EMV filter, and can be used in medical settings (2x MOPP / 250V AC). These devices are protected agains overload (hiccup mode), overvoltage, and short circuit, as well as they conform with the EMV norms EN60601-1-2 class B, EN61000-4-2, and EN55032 Klasse B. We offer the following types of this recom series: RACM60-12SK/OF/PCB-T and RACM60-24SK/OF/PCB-T. single output current: 60W input voltage range: 80 to 264V AC (47 to 63Hz), 120 to 370V DC inrush current, max.: 60A off-load power, typ.: 0,1W overload protection: 105 to 120% isolation voltage (I/P-O/P): 4000V AC operating temperature: -40 to +85°C operating height, max.: 4000m dimensions: 78,4x53,0x35,4mm weight, typ.: 111g

Specifications

manufacturer
Manufacturer's name RACM60-12SK/...
Output voltage [V] 12
Efficiency [%] 90
Output current [A] 5
Output voltage tolerance: [%] ±2
Output power [W] 60
Data Sheet

Unit price

21,19 €

Stock: 0
Further delivery:
CW 03/2025
