> Power supplies>Power supplies>Switching power supplies, open frame>Recom switching power supplies, 60W, for medical technology, open frame (PCB), RACM60-K/OF series>RACM60-48SK/OF

Manufacturers

RACM60-48SK/OF

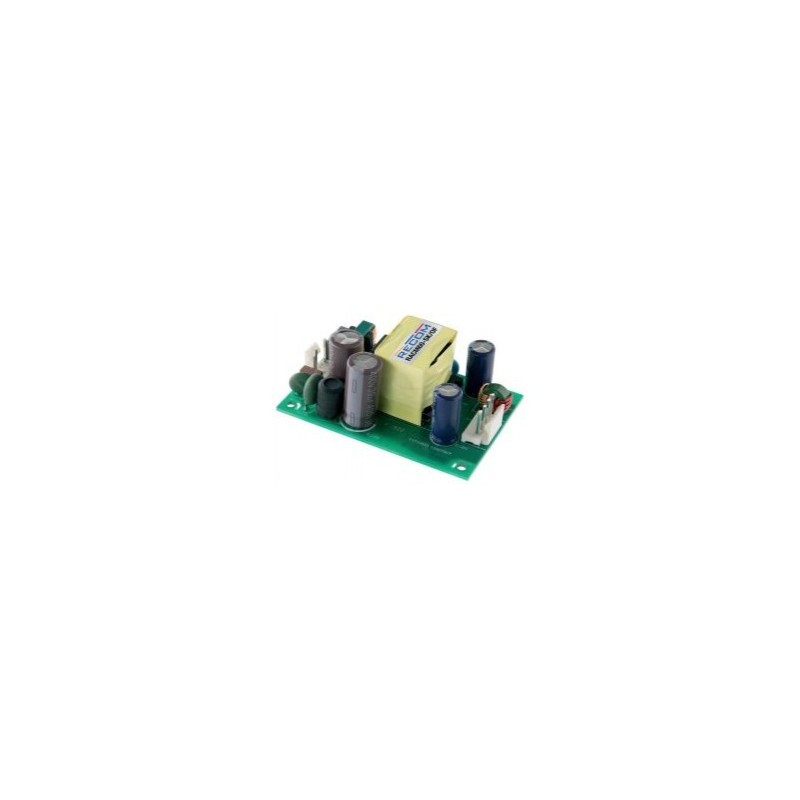

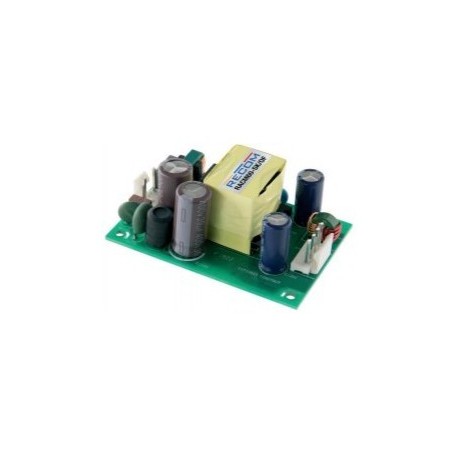

Recom power supply series RACM60-K/OF

Open frame switching power supplies in a compact housing (2"x3") with 60W and a universal input. These devices have an integrated EMC filter (class B) and are protected against short circuit, overload (hiccup mode) as well as overvoltage. They are suitable for medical technology applications (2xMOPP/250V AC) and comply with EN60601-1-2 class B, EN61000-4-2 as well as EN55032 class B. We offer various types of this Recom series.

  • single output
  • output: 60W
  • input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • no-load power consumption: 0,1W
  • overload protection: 105 bis 120%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • maximal operating altitude: 4000m
  • dimensions: 78,4x53x31,5mm
  • weight: 11g
RACM60-48SK/OF, Recom switching power supplies, 60W, for medical technology, open frame (PCB), RACM60-K/OF series

RACM60-48SK/OF

247213 RACM60-48SK/OF RACM60-48SK/OF Recom power supply series RACM60-K/OF. Open frame switching power supplies in a compact housing (2"x3") with 60W and a universal input. These devices have an integrated EMC filter (class B) and are protected against short circuit, overload (hiccup mode) as well as overvoltage. They are suitable for medical technology applications (2xMOPP/250V AC) and comply with EN60601-1-2 class B, EN61000-4-2 as well as EN55032 class B. We offer various types of this Recom series. single output output: 60W input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A no-load power consumption: 0,1W overload protection: 105 bis 120% withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +85°C maximal operating altitude: 4000m dimensions: 78,4x53x31,5mm weight: 11g

Specifications

manufacturer
Manufacturer's name RACM60-48SK/OF
Output voltage [V] 48
Efficiency [%] 90
Output current [A] 1,25
Output voltage tolerance: [%] ±2
Output power [W] 60
Data Sheet

Unit price

26,69 €

Stock: 0
Further delivery:
CW 07/2025
