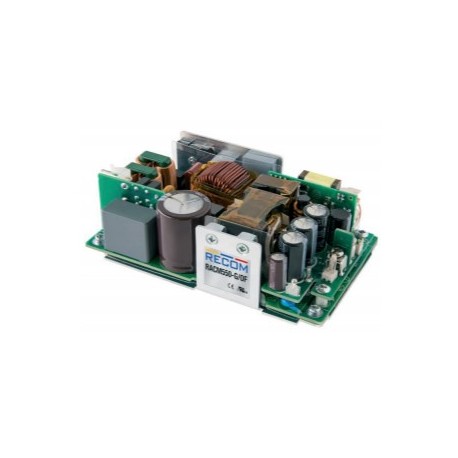

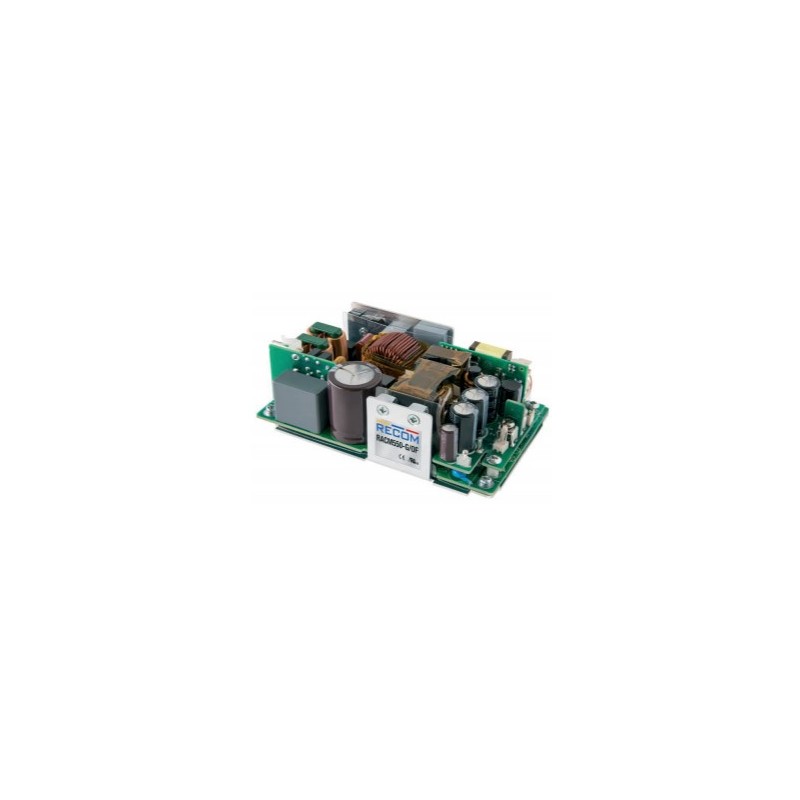

RACM550-24SG/OF

Recom power supply series RACM550-G/OF

Open frame switching power supplies in a compact case (5"x3") with 550W and a universal input. These devices have a fanless design (300W baseplate-cooled) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V AC working voltage insulation) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RACM550-24SG/OF, RACM550-36SG/OF, RACM550-48SG/OF and RACM550-56SG/OF.

  • single output
  • output: 550W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal output voltage tolerance: ±3%
  • maximal input inrush current: 60A
  • maximal leakage current: 0,25mA
  • overload protection: 105 to 150%
  • maximal ripple and noise: 120mVpp
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +70°C
  • dimensions: 127x76x38mm
  • weight: 500g
RACM550-24SG/OF, Recom switching power supplies, 550W, for medical technology, open frame (PCB), RACM550-G/OF series

RACM550-24SG/OF

235453 RACM550-24SG/OF RACM550-24SG/OF Recom power supply series RACM550-G/OF. Open frame switching power supplies in a compact case (5"x3") with 550W and a universal input. These devices have a fanless design (300W baseplate-cooled) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V AC working voltage insulation) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RACM550-24SG/OF, RACM550-36SG/OF, RACM550-48SG/OF and RACM550-56SG/OF. single output output: 550W input voltage: 80 to 264V AC (47 to 63Hz) maximal output voltage tolerance: ±3% maximal input inrush current: 60A maximal leakage current: 0,25mA overload protection: 105 to 150% maximal ripple and noise: 120mVpp withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +70°C dimensions: 127x76x38mm weight: 500g

Specifications

manufacturer
Manufacturer's name RACM550-24SG/OF
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 22,92
Data Sheet

Unit price

143,59 €

Stock: 0
Next incoming goods:
CW 49/2024
30 units

Further delivery:
CW 14/2025
