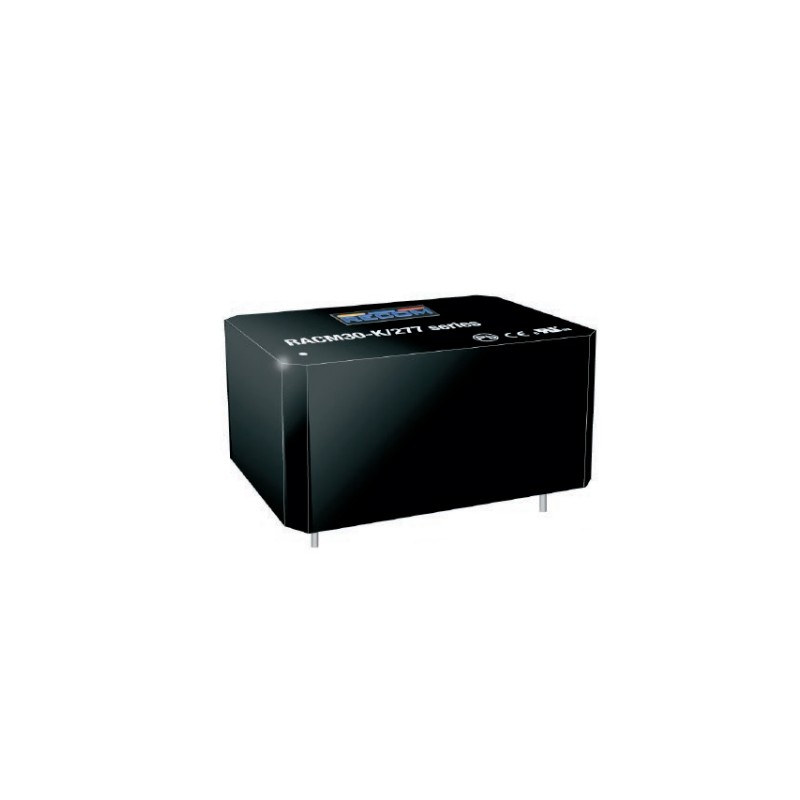

RACM30-12DK/277

Recom AC/DC converter series RACM30-K/277

AC/DC converters in an enclosed housing with 30W, protection class II and a universal input. These devices are suitable for medical technology applications as well as for an operating altitude of up to 5000m and are protected against overload, overvoltage as well as short circuit. They have a low no-load power as well as various mounting options and comply with EN62368-1, EN60335-1, EN60601-1, EN61010-1, EN61558-1 as well as EN55032. We offer the various types of this Recom series: RACM30-_/277 for THT mounting, RACM30-_/277/W with a stranded wire connection, RACM30-_/277/PMP with plug-in terminals for DIN rail mounting and RACM30-/277/OF as open frame types as well as the DIN rail clip kit R-DR/CLIP.

  • single (RACM30-_SK_) and dual output (RACM30-_DK_)
  • output: 30W
  • input voltage: 85 to 305V AC
  • maximal input inrush current: 30A
  • leakage current: <100µA
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +90°C

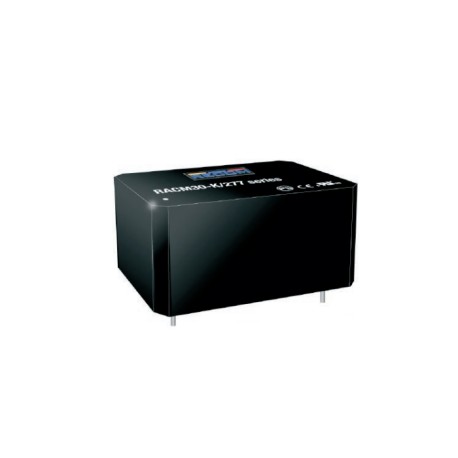

RACM30-12DK/277, Recom AC/DC converters, 30W, for medical technology, RACM30-K/277 series

RACM30-12DK/277

242687 RACM30-12DK/277 RACM30-12DK/277 Recom AC/DC converter series RACM30-K/277. AC/DC converters in an enclosed housing with 30W, protection class II and a universal input. These devices are suitable for medical technology applications as well as for an operating altitude of up to 5000m and are protected against overload, overvoltage as well as short circuit. They have a low no-load power as well as various mounting options and comply with EN62368-1, EN60335-1, EN60601-1, EN61010-1, EN61558-1 as well as EN55032. We offer the various types of this Recom series: RACM30-_/277 for THT mounting, RACM30-_/277/W with a stranded wire connection, RACM30-_/277/PMP with plug-in terminals for DIN rail mounting and RACM30-/277/OF as open frame types as well as the DIN rail clip kit R-DR/CLIP. single (RACM30-_SK_) and dual output (RACM30-_DK_) output: 30W input voltage: 85 to 305V AC maximal input inrush current: 30A leakage current: &lt;100µA withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +90°C

Specifications

manufacturer
Manufacturer's name RACM30-12DK/277
Output voltage [V] ±12
Efficiency [%] 86
Output current [A] ±1,25
Output voltage tolerance: [%] ±3
Output power [W] 30
Ripple [mVp-p] 100
Data Sheet

Unit price

19,19 €

Stock: 8
Further delivery:
CW 15/2025
