RACM30-24SER/W

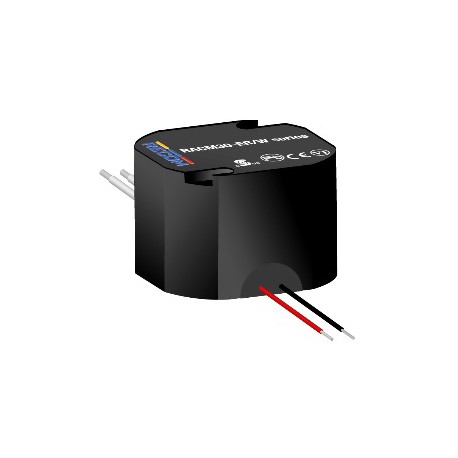

Recom AC/DC converter series RACM30-ER/W

AC/DC converter modules in a round plastic housing (IP68) with 30W, a low no-load power and a universal input. These devices are suitable for medical applications (2xMOPP / 250V AC) as well as for PCB mounting and are protected against overload, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN60950-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55024/32 as well as EN55015-1. We offer the following types of this Recom series: RACM30-12SER/W and RACM30-24SER/W.

  • single output
  • output: 30W
  • input voltage: 90 to 26V AC
  • maximal input inrush current: 95A
  • leakage current: <100µA
  • withstand voltage I/P-O/P: 4400V AC
  • operating temperature: -20 to +70°C
  • weight: 132g
Recom RACM30 series

RACM30-24SER/W

110864 RACM30-24SER/W RACM30-24SER/W Recom AC/DC converter series RACM30-ER/W. AC/DC converter modules in a round plastic housing (IP68) with 30W, a low no-load power and a universal input. These devices are suitable for medical applications (2xMOPP / 250V AC) as well as for PCB mounting and are protected against overload, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;UL/EN60950-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55024/32 as well as EN55015-1. We offer the following types of this Recom series:&nbsp;RACM30-12SER/W and RACM30-24SER/W. single output output: 30W input voltage: 90 to 26V AC maximal input inrush current: 95A leakage current: &lt;100&micro;A withstand voltage I/P-O/P: 4400V AC operating temperature: -20 to +70&deg;C weight: 132g

Specifications

manufacturer
Manufacturer's name RACM30-24SER/W
Output voltage [V] 24
Efficiency [%] 89
Output current [A] 1,25
Output voltage tolerance: [%] ±3
Output power [W] 30
Ripple [mVp-p] 75
Data Sheet

Unit price

51,69 €

Stock: 4
Further delivery:
CW 47/2025
