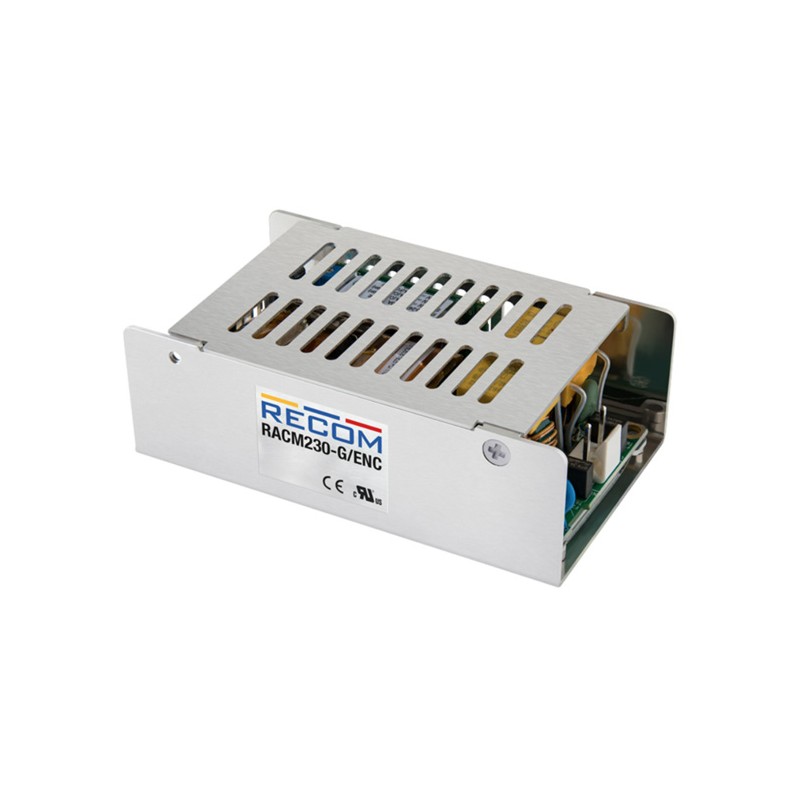

RACM230-36SG/ENC

Recom AC/DC power supplies series RACM230-G

Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled), a low no-load power consumption (<0,5W) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V working voltage insulation) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series: RACM230-12SG/ENC, RACM230-24SG/ENC, RACM230-36SG/ENC, RACM230-48SG/ENC and RACM230-54SG/ENC.

  • single output
  • output: 230W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±1%
  • maximal input inrush current: 60A
  • maximal leakage current: 0,3mA
  • overload protection: 105 to 200%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +80°C
  • dimensions: 105,0x62,0x35,0mm
  • weight: 290g
RACM230-36SG/ENC, Recom AC/DC switching power supplies, 230W, medical, enclosed, RACM230-G series

RACM230-36SG/ENC

247224 RACM230-36SG/ENC RACM230-36SG/ENC Recom AC/DC power supplies series RACM230-G. Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled), a low no-load power&nbsp;consumption (&lt;0,5W) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical&nbsp;applications (2xMOPP, 250V working voltage insulation) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series:&nbsp;RACM230-12SG/ENC,&nbsp;RACM230-24SG/ENC,&nbsp;RACM230-36SG/ENC,&nbsp;RACM230-48SG/ENC and&nbsp;RACM230-54SG/ENC. single output output: 230W input voltage: 80 to 264V AC (47 to 63Hz) output voltage tolerance:&nbsp;&plusmn;1% maximal input inrush current: 60A maximal leakage current: 0,3mA overload protection:&nbsp;105 to 200% withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +80&deg;C dimensions: 105,0x62,0x35,0mm weight: 290g

Specifications

manufacturer
Manufacturer's name RACM230-36SG/ENC
Output voltage [V] 36
Efficiency [%] 92
Output current [A] 6,39
Data Sheet

Unit price

92,79 €

Stock: 0
Further delivery:
CW 14/2025
