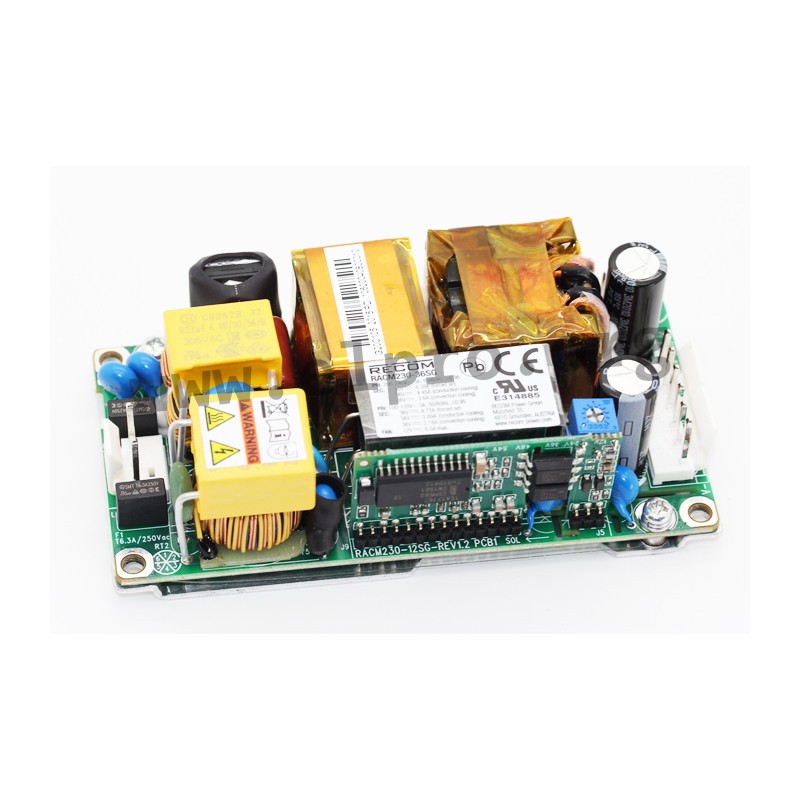

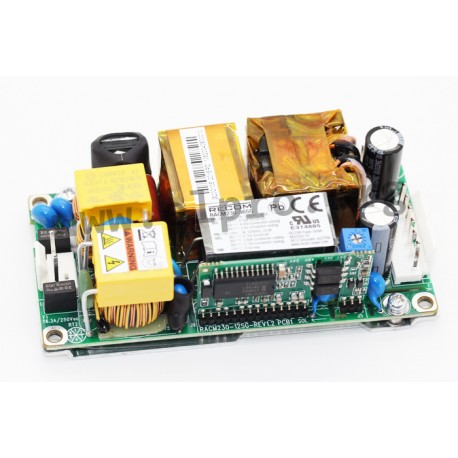

RACM230-24SG

Recom power supply series RACM230-G

Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled), a low no-load power consumption (<0,5W) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V working voltage insulation) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series: RACM230-12SG, RACM230-24SG, RACM230-36SG, RACM230-48SG and RACM230-54SG.

  • single output
  • output: 230W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±1%
  • maximal input inrush current: 60A
  • maximal leakage current: 0,3mA
  • overload protection: 105 to 200%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +80°C
  • dimensions: 101,6x50,8x32mm
  • weight: 220g
RACM230-24SG, Recom switching power supplies, 230W, for medical technology, open frame (PCB), RACM230-G series

RACM230-24SG

235449 RACM230-24SG RACM230-24SG Recom power supply series RACM230-G. Open frame (PCB) switching power supplies in a compact case (4"x2") with 230W, a universal input and a pin strip connection for nylon-crimp terminals. These devices have a fanless design (160W baseplate-cooled), a low no-load power&nbsp;consumption (&lt;0,5W) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical&nbsp;applications (2xMOPP, 250V working voltage insulation) and comply with EN55032 class B as well as EN55035. We offer the following types of this Recom series:&nbsp;RACM230-12SG,&nbsp;RACM230-24SG,&nbsp;RACM230-36SG,&nbsp;RACM230-48SG and&nbsp;RACM230-54SG. single output output: 230W input voltage: 80 to 264V AC (47 to 63Hz) output voltage tolerance:&nbsp;&plusmn;1% maximal input inrush current: 60A maximal leakage current: 0,3mA overload protection:&nbsp;105 to 200% withstand voltage I/P-O/P: 4000V AC operating temperature: -40 to +80&deg;C dimensions: 101,6x50,8x32mm weight: 220g

Specifications

manufacturer
Manufacturer's name RACM230-24SG
Output voltage [V] 24
Efficiency [%] 92
Output current [A] 9,58
Data Sheet

Unit price

85,09 €

Stock: 7
Further delivery:
CW 11/2025
