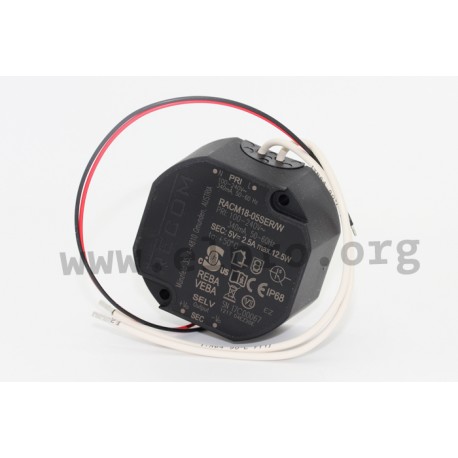

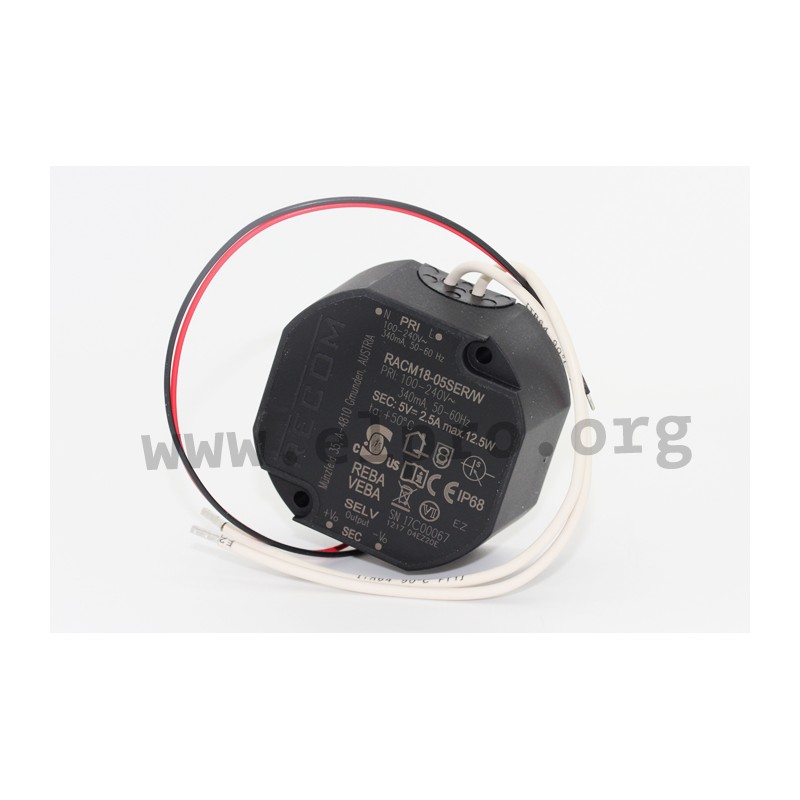

RACM18-05SER/W

Recom AC/DC converter series RACM18-ER/W

AC/DC converter modules in an enclosed plastic housing (round, IP68) with 18W, a low no-load power and a universal input. These devices are suitable for medical applications (2xMOPP / 280V AC) and are protected against overvoltage, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN60950-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55024/32 as well as EN55014-1 (-2). We offer the following types of this Recom series: RACM18-05SER/W, RACM18-12SER/W and RACM18-24SER/W.

  • single output
  • output: 18W
  • input voltage: 90 to 264V AC
  • maximal input inrush current: 46A
  • leakage current: <100µA
  • withstand voltage I/P-O/P: 4600V AC
  • operating temperature: -20 to +80°C
  • weight: 92g

RACM18-05SER/W

110860 RACM18-05SER/W RACM18-05SER/W Recom AC/DC converter series RACM18-ER/W. AC/DC&nbsp;converter modules in an enclosed plastic housing (round, IP68) with 18W, a low no-load power and a universal input. These&nbsp;devices are suitable for medical applications (2xMOPP / 280V AC) and are protected against overvoltage, overtemperature as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;UL/EN60950-1, EN60601-1, EN60335-1, EN61558-1, EN61558-2-16, EN55024/32 as well as EN55014-1 (-2). We offer the following types of this Recom&nbsp;series:&nbsp;RACM18-05SER/W, RACM18-12SER/W and RACM18-24SER/W. single output output: 18W input voltage: 90 to 264V AC maximal input inrush current: 46A leakage current: &lt;100&micro;A withstand voltage I/P-O/P: 4600V AC operating temperature: -20 to +80&deg;C weight: 92g

Specifications

manufacturer
Manufacturer's name RACM18-05SER/W
Output voltage [V] 5
Efficiency [%] 81
Output current [A] 2,5
Output voltage tolerance: [%] ±3
Output power [W] 18
Ripple [mVp-p] 140
Data Sheet

Unit price

45,49 €

Stock: 28
Further delivery:
CW 51/2025
