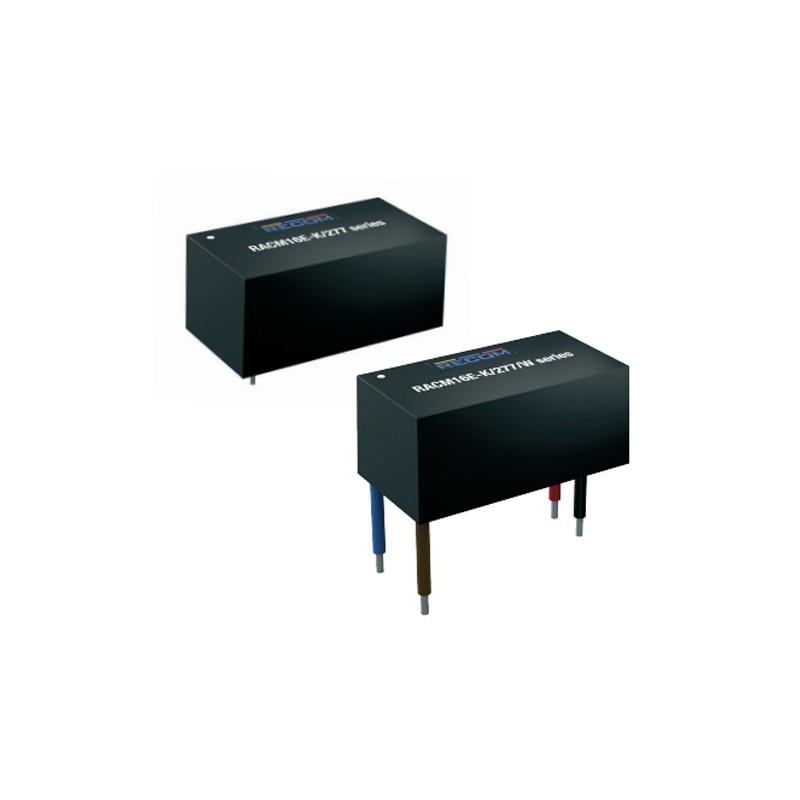

RACM16E-24SK/277/W

Recom AC/DC converters series RACM16E-K/277/W

AC/DC converters with a power output of 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with ANSI/AAMI ES 60601-1, EN 62368-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 60601-1, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM16E-05SK/277/W, RACM16E-12SK/277/W und RACM16E-24SK/277/W.

  • single output
  • output: 16W
  • input voltage: 85 to 305VAC (47 to 63Hz), 120 to 430V DC
  • operating temperature: -40 to +65 °C
  • isolation voltage (I/P-O/P): 4200V
  • contact termination: stranded wire
  • dimension: 52,7x27,6x23mm
  • weight: 60g

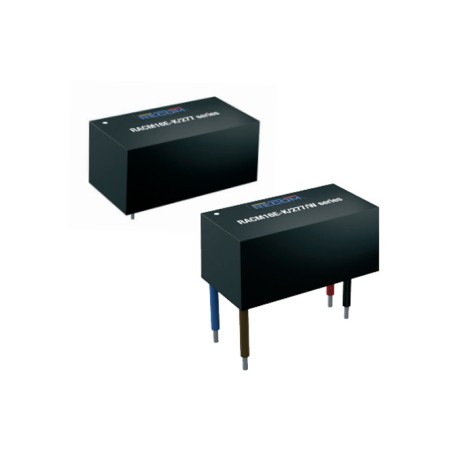

RACM16E-24SK/277/W, Recom AC/DC converters, 16W, for medical technology, RACM16E-K/277/W series

RACM16E-24SK/277/W

247199 RACM16E-24SK/277/W RACM16E-24SK/277/W Recom AC/DC converters series RACM16E-K/277/W. AC/DC converters with a power output of 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with ANSI/AAMI ES 60601-1, EN 62368-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 60601-1, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM16E-05SK/277/W, RACM16E-12SK/277/W und RACM16E-24SK/277/W. single output output: 16W input voltage: 85 to 305VAC (47 to 63Hz), 120 to 430V DC operating temperature: -40 to +65 °C isolation voltage (I/P-O/P): 4200V contact termination: stranded wire dimension: 52,7x27,6x23mm weight: 60g

Specifications

manufacturer
Manufacturer's name RACM16E-24SK/277/W
Output voltage [V] 24
Efficiency [%] 86
Output current [A] 0,667
Output voltage tolerance: [%] 2
Output power [W] 16
Ripple [mVp-p] 150
Data Sheet

Unit price

10,79 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 20 units or
multiples of 20.
